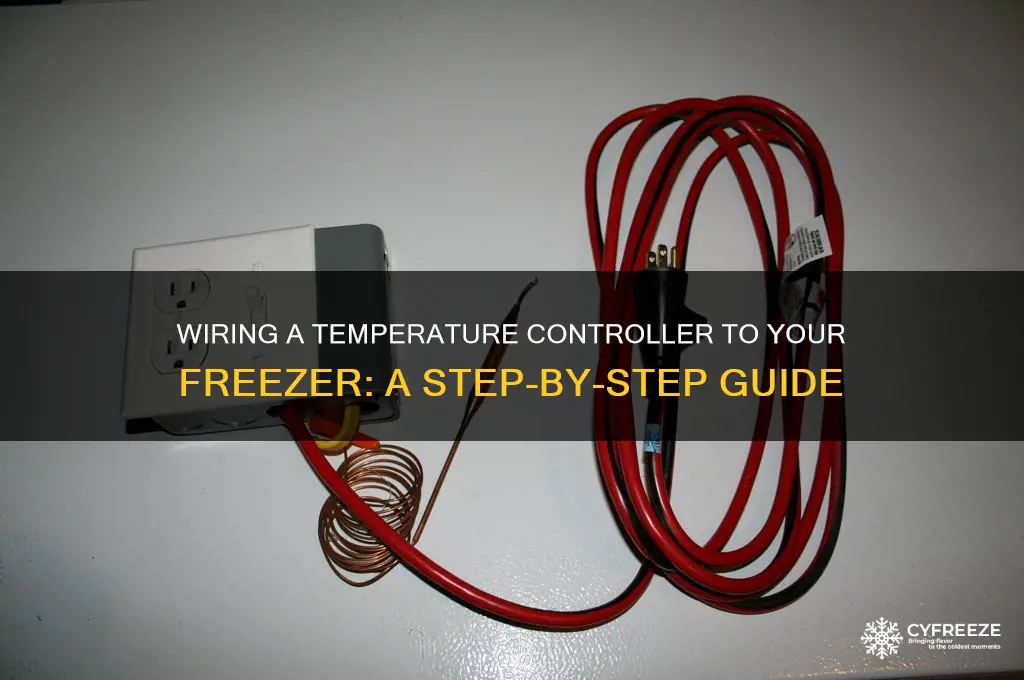

Wiring a temperature controller to a freezer is a practical project that allows for precise control over the freezer's internal temperature, ensuring optimal performance and energy efficiency. This process involves connecting the controller to the freezer's compressor and, in some cases, a heating element or alarm system. To begin, you'll need to gather the necessary tools and components, including a compatible temperature controller, wiring, and a basic understanding of electrical systems. The first step is to identify the freezer's power source and locate the compressor's wiring, typically found near the motor. You'll then connect the temperature controller's output to the compressor, ensuring the correct polarity and voltage. Additionally, you may need to wire a temperature sensor probe inside the freezer to provide accurate readings to the controller. Following a detailed guide or manual is essential to ensure a safe and successful installation, as improper wiring can lead to equipment damage or safety hazards. With careful planning and execution, this project can enhance your freezer's functionality and provide a more controlled environment for food storage or other applications.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire strippers, thermostat, screws, freezer manual, safety gear, and compatible controller
- Locate Freezer Wiring: Identify compressor, fan, and defrost heater connections in the freezer’s wiring diagram
- Disconnect Power: Unplug freezer or turn off circuit breaker to ensure safe wiring modifications
- Connect Thermostat Wires: Attach controller wires to corresponding freezer terminals (power, ground, sensor)
- Test & Calibrate: Restore power, set temperature, and verify controller accuracy with a thermometer
Gather Tools & Materials: Wire strippers, thermostat, screws, freezer manual, safety gear, and compatible controller
Before you embark on wiring a temperature controller to your freezer, it’s crucial to assemble the right tools and materials. This ensures not only efficiency but also safety throughout the process. Start with wire strippers, a tool specifically designed to remove insulation from electrical wires without damaging the conductors. Opt for a model with adjustable stripping holes to accommodate different wire gauges, typically ranging from 10 to 22 AWG, which are common in household appliances. Precision here prevents short circuits or loose connections that could compromise the system.
Next, ensure you have a thermostat or temperature controller compatible with your freezer model. Compatibility is non-negotiable—check the voltage rating (usually 120V or 240V) and the amperage capacity to match your freezer’s requirements. A mismatch can lead to overheating, malfunction, or even permanent damage. If in doubt, consult the freezer manual, which often includes wiring diagrams and specifications. This document is your blueprint, providing insights into the freezer’s internal circuitry and recommended modifications.
Safety should never be an afterthought. Equip yourself with safety gear, including insulated gloves and safety goggles, to protect against electrical shocks and debris. Additionally, a non-contact voltage tester is invaluable for verifying that power is off before you begin working. Even if you’ve flipped the circuit breaker, double-checking ensures you’re not at risk of accidental electrocution. Remember, electrical work demands respect for its potential hazards.
Finally, gather screws and mounting hardware appropriate for securing the controller. Stainless steel screws are ideal due to their corrosion resistance, especially in cold, humid environments like freezers. Keep a variety of lengths on hand to accommodate different mounting surfaces. A magnetic parts tray can help organize these small components, preventing them from getting lost in the confines of the freezer unit. With these tools and materials in place, you’re well-prepared to tackle the wiring process confidently and safely.
Adjusting Your Freezer Temperature: A Simple Guide to Turning It Up
You may want to see also
Explore related products
Locate Freezer Wiring: Identify compressor, fan, and defrost heater connections in the freezer’s wiring diagram
Understanding your freezer's wiring diagram is crucial when installing a temperature controller. This diagram, often found inside the unit or in the user manual, acts as a roadmap, revealing the intricate network of wires powering its essential components.
Think of it as a treasure map, where 'X' marks the spots for the compressor, fan, and defrost heater – the key players in temperature regulation.
Identifying the Players:
- Compressor: This muscular component is the heart of the cooling system, circulating refrigerant to remove heat. In the wiring diagram, it's typically represented by a symbol resembling a cylinder or a pump, often labeled "COMP" or "C".
- Fan: The unsung hero, the fan circulates cold air throughout the freezer, ensuring even cooling. Look for a symbol resembling a propeller or a circle with blades, often labeled "FAN".
- Defrost Heater: This element prevents ice buildup by periodically melting frost. Its symbol might resemble a zigzag line or a resistor, often labeled "DEF" or "HTR".
Decoding the Diagram:
Wiring diagrams use color-coding and line thickness to differentiate wires. Typically, thicker lines represent higher voltage or current-carrying wires. Colors often follow conventions, with black or red indicating live wires, white or blue for neutral, and green or yellow for ground. However, always refer to your specific diagram's legend for accurate color coding.
Trace the wires from each component back to their respective terminals on the control board. This will reveal how they are interconnected and powered.
Practical Tips:
- Safety First: Before touching any wires, ensure the freezer is unplugged. Electricity is no joke!
- Take Pictures: Document the existing wiring connections with your phone before making any changes. This will be invaluable if you need to revert back.
- Label Everything: As you disconnect wires, label them clearly with their corresponding component and terminal number. This prevents confusion during reassembly.
Mastering the freezer's wiring diagram empowers you to confidently connect your temperature controller, ensuring precise control over your freezer's environment. Remember, knowledge is power, especially when dealing with electrical systems.
Mastering Freezer Temperature Control in Your Frigidaire FGHS2655PF4
You may want to see also
Explore related products
Disconnect Power: Unplug freezer or turn off circuit breaker to ensure safe wiring modifications
Before you even think about touching wires, disconnect the power to your freezer. This isn't optional; it's the cornerstone of electrical safety. A live circuit can deliver a fatal shock, ignite a fire, or damage your equipment. Whether you're a seasoned DIYer or a first-timer, this step is non-negotiable.
Unplugging the freezer is the simplest method. Pull the plug from the wall outlet, ensuring no power is flowing to the unit. If the freezer is hardwired (common in commercial units), locate the circuit breaker in your electrical panel. Flip the corresponding breaker to the "off" position. Double-check by testing the freezer’s power with a non-contact voltage tester or a multimeter. A lit indicator or a reading of 0 volts confirms the circuit is dead.
Skipping this step is a recipe for disaster. Even if the freezer seems "off," residual power can remain in the system. Capacitors, for instance, store energy and can discharge unexpectedly. Additionally, some freezers have backup power systems or timers that keep circuits live. Always assume the worst and treat every wire as hot until proven otherwise.
Pro tip: Label the breaker or take a photo of your electrical panel before flipping switches. This prevents accidental disruption to other circuits and saves time during reassembly. If you’re unsure which breaker controls the freezer, turn off the main power supply to the house. Overkill? Perhaps. But when it comes to electricity, caution trumps convenience every time.
Finally, verify the power is off before proceeding. A single mistake here can turn a straightforward project into a hazardous situation. Treat this step as your safety contract—sign it with a voltage test, and only then proceed with confidence.
Mowing in Winter: Risks of Cutting Grass Below Freezing Temperatures
You may want to see also
Explore related products
Connect Thermostat Wires: Attach controller wires to corresponding freezer terminals (power, ground, sensor)
Connecting thermostat wires to a freezer’s terminals is a precise task that bridges the gap between your temperature controller and the appliance. Start by identifying the three critical wires: power, ground, and sensor. The power wire supplies electricity to the controller, the ground wire ensures electrical safety by completing the circuit, and the sensor wire transmits temperature readings from the freezer to the controller. Each wire must be matched to its corresponding terminal on the freezer to ensure proper functionality. Misalignment can lead to malfunctions, such as the freezer failing to maintain the desired temperature or the controller not receiving accurate data.
To begin, consult the wiring diagram provided with your temperature controller and freezer. Most controllers use color-coded wires: red for power, black for ground, and yellow or white for the sensor. However, always verify these colors against the manufacturer’s instructions, as standards can vary. Strip approximately ¼ inch of insulation from the end of each wire using wire strippers, exposing the conductive core. Ensure the exposed wire is clean and free of fraying to maintain a secure connection.
Next, locate the freezer’s terminal block, typically found near the compressor or control panel. The terminals are usually labeled as "Power," "Ground," and "Sensor" or marked with symbols like "+" for power and "GND" for ground. Loosen the screws on the corresponding terminals and insert the stripped wire ends. Tighten the screws securely, ensuring the wires are held firmly in place. Avoid overtightening, as this can damage the terminals or strip the wires.
A practical tip is to use a multimeter to test continuity before finalizing the connections. This step confirms that the wires are correctly attached and the circuit is complete. If continuity is not detected, double-check the wire placement and ensure no exposed wires are touching each other, which could cause short circuits. Once confirmed, secure the wires with zip ties or electrical tape to prevent accidental disconnection during operation.
In conclusion, connecting thermostat wires to freezer terminals is a straightforward yet critical step in installing a temperature controller. Precision in matching wires to terminals, combined with careful preparation and testing, ensures reliable performance. By following these steps, you’ll achieve a seamless integration that allows your freezer to operate efficiently under the controller’s guidance.
At What Temperature Does Beer Freeze? A Chilling Guide
You may want to see also
Explore related products
Test & Calibrate: Restore power, set temperature, and verify controller accuracy with a thermometer
Once the temperature controller is wired to your freezer, the critical next step is to ensure it functions accurately. Begin by restoring power to the unit, allowing the system to initialize. Set the desired temperature on the controller, typically within the range of -18°C to 0°C for most freezers, depending on your storage needs. This initial setup is straightforward but lays the foundation for precise calibration.
Accuracy is paramount, and a thermometer becomes your indispensable tool here. Place a calibrated digital thermometer inside the freezer, ensuring it’s positioned away from walls or direct airflow to avoid skewed readings. Allow the freezer to run for at least 2–3 hours to stabilize, then compare the thermometer’s reading to the controller’s set temperature. A discrepancy of more than ±2°C indicates a need for calibration.
Most temperature controllers feature an offset adjustment, often accessible via a small screw or digital menu. If the thermometer reads warmer than the set temperature, adjust the offset to lower the controller’s target. Conversely, if the thermometer reads colder, increase the offset. Make small adjustments (e.g., 0.5°C increments) and retest after each change to avoid overshooting.
Practical tips can streamline this process. For instance, use a high-quality thermometer with a resolution of at least 0.1°C for precision. If your controller lacks an offset function, consult the manufacturer’s manual for alternative calibration methods. Additionally, repeat the verification process after 24 hours to ensure stability, as some systems may drift initially.
Calibration isn’t a one-time task; environmental factors like ambient temperature or door frequency can affect performance over time. Aim to recalibrate every 3–6 months or whenever you notice inconsistent freezing. This proactive approach ensures your freezer maintains optimal conditions, safeguarding its contents and extending its lifespan.
Frigidaire Upright Freezer FFFH20F2QW: Easy Temperature Setting Guide
You may want to see also
Frequently asked questions
Use a digital temperature controller specifically designed for refrigeration applications. Look for one with a control range suitable for freezer temperatures (typically -50°C to +10°C) and a relay output to handle the freezer’s compressor.
Wire the controller’s relay output to the freezer’s compressor. Connect the controller’s power supply to the mains, and ensure the sensor probe is placed inside the freezer. Follow the controller’s wiring diagram for proper connections, and use a junction box if necessary.
While a thermostat can control temperature, a temperature controller offers more precision and features like adjustable setpoints, alarms, and digital displays. For better accuracy and control, a temperature controller is recommended for freezer applications.
