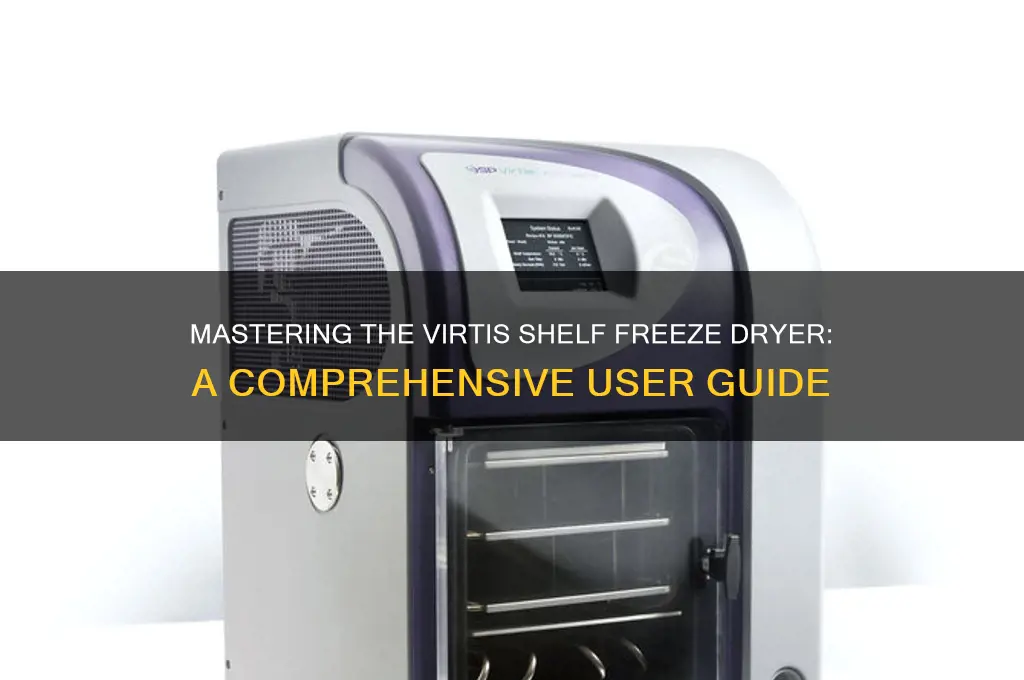

The Virtis Shelf Freeze Dryer is a sophisticated piece of equipment widely used in laboratories and industries for lyophilization, a process that removes water from materials while preserving their structure and integrity. To effectively use this device, start by preparing your samples according to the desired specifications, ensuring they are evenly distributed in vials or trays. Pre-freeze the samples to the required temperature, typically below -40°C, to initiate the sublimation process. Once prepared, load the samples onto the shelves of the freeze dryer, ensuring proper spacing for optimal drying. Set the desired parameters, such as shelf temperature, condenser temperature, and vacuum pressure, using the control panel. Initiate the drying cycle, monitoring the process through the built-in display or external software. After completion, carefully remove the dried samples and seal them in appropriate containers to maintain their stability. Following these steps ensures efficient and reliable freeze-drying with the Virtis Shelf Freeze Dryer.
Explore related products
What You'll Learn
- Preparation Steps: Clean, assemble, and pre-cool the freeze dryer before starting the drying process
- Loading Samples: Arrange samples evenly on shelves, ensuring proper spacing for efficient freeze-drying
- Programming Cycles: Set temperature, pressure, and time parameters using the control panel interface
- Monitoring Process: Track vacuum levels, temperature, and drying progress via the display screen
- Post-Drying Handling: Safely unload, seal, and store dried samples after completing the cycle
Preparation Steps: Clean, assemble, and pre-cool the freeze dryer before starting the drying process
Before initiating the freeze-drying process with a Virtis shelf freeze dryer, meticulous preparation is paramount to ensure optimal performance and sample integrity. The first critical step is cleaning the unit thoroughly. Residual moisture or contaminants from previous cycles can compromise the drying efficiency and contaminate new samples. Disassemble removable components such as shelves, trays, and gaskets, and clean them with a mild detergent solution or isopropyl alcohol. Pay special attention to sealing surfaces and vacuum ports, as even minor debris can hinder vacuum integrity. Once cleaned, allow all parts to air-dry completely or use a lint-free cloth to prevent introducing new contaminants.
Assembly follows cleaning, requiring precision to maintain the system’s functionality. Reinsert the shelves, ensuring they are level and securely positioned to allow uniform heat distribution. Verify that gaskets are correctly aligned and free from tears or deformities, as these are essential for maintaining a tight vacuum seal. Connect all vacuum and gas lines according to the manufacturer’s instructions, checking for leaks by applying soapy water to joints and observing for bubbles during a preliminary vacuum test. Proper assembly not only safeguards the equipment but also ensures consistent drying results across all samples.
Pre-cooling the freeze dryer is a step often overlooked but critical for efficient operation. Lowering the system’s temperature before introducing samples minimizes thermal shock and reduces the time required to reach the desired drying conditions. Set the unit to its pre-cooling mode, typically around -40°C to -50°C, and allow it to stabilize for at least 30 minutes. This step is particularly important when working with temperature-sensitive materials, as it prevents sample degradation during the initial freezing phase. Monitoring the temperature during pre-cooling ensures the system is ready for sample loading without delays.
While these preparation steps may seem time-consuming, they are indispensable for achieving reliable and reproducible results. Skipping cleaning can lead to cross-contamination, improper assembly risks system failure, and neglecting pre-cooling prolongs drying times and compromises sample quality. By integrating these practices into your routine, you not only extend the lifespan of the Virtis freeze dryer but also enhance the consistency and efficiency of your freeze-drying processes. Attention to these details reflects a commitment to scientific rigor and operational excellence.
Is Deep Freeze Gel Safe During Pregnancy? Expert Advice for Moms-to-Be
You may want to see also
Explore related products
Loading Samples: Arrange samples evenly on shelves, ensuring proper spacing for efficient freeze-drying
Efficient sample loading is critical for optimal freeze-drying results in a Virtis shelf freeze dryer. Improper spacing can lead to uneven drying, extended cycle times, and compromised sample integrity. The key principle is to maximize surface area exposure while minimizing interference between samples. This allows for uniform sublimation of ice directly from the frozen state to vapor, bypassing the liquid phase.
Think of it as arranging dominoes: too close together, they hinder each other's fall; spaced optimally, they cascade smoothly.
Steps for Optimal Sample Arrangement:
- Determine Sample Size and Shape: Consider the dimensions and volume of your samples. Smaller vials or ampoules can be placed closer together than larger flasks. Flat, thin samples dry faster than bulky ones.
- Utilize Shelf Space Strategically: Place larger samples on lower shelves where colder temperatures aid in initial freezing. Smaller samples can be positioned on upper shelves.
- Maintain Consistent Spacing: Aim for a minimum of 1-2 cm between samples. This allows for adequate air circulation and prevents vapor buildup around individual samples.
- Consider Sample Orientation: For vials or flasks, position them upright to maximize surface area exposure. For flat samples, ensure they lie flat on the shelf surface.
Cautions:
Avoid overcrowding shelves, even if it means running multiple batches. Overloading restricts airflow and leads to inefficient drying. Be mindful of sample compatibility. Avoid placing volatile or reactive samples near each other to prevent cross-contamination.
By meticulously arranging samples with proper spacing, you ensure efficient freeze-drying, preserving sample quality and reducing cycle times. This seemingly simple step is fundamental to achieving consistent and reliable results with your Virtis shelf freeze dryer.
Overusing Deep Freeze: Risks, Efficiency, and Optimal Storage Practices
You may want to see also
Explore related products
Programming Cycles: Set temperature, pressure, and time parameters using the control panel interface
The control panel interface of a Virtis shelf freeze dryer is your command center for precise lyophilization. Here, you orchestrate the delicate dance of temperature, pressure, and time, transforming your samples from frozen to dried with meticulous control. Understanding how to program these parameters is crucial for achieving optimal drying efficiency and sample integrity.
Understanding the interplay between temperature, pressure, and time is key to successful freeze-drying. Lower temperatures and pressures generally result in slower drying but better sample preservation, while higher settings expedite the process but may compromise delicate materials.
Programming cycles on the Virtis control panel is a straightforward process. Begin by accessing the cycle programming menu, typically labeled "Cycle Setup" or similar. Select "New Cycle" and name it descriptively for future reference. You'll then be prompted to input specific parameters for each drying phase:
- Primary Drying: Set the shelf temperature, typically starting at a lower value (e.g., -40°C) and gradually increasing to a target temperature (e.g., -20°C). Simultaneously, set the chamber pressure to a low value (e.g., 50 mTorr) to facilitate ice sublimation. Define the duration of this phase based on your sample type and desired drying rate.
- Secondary Drying: Increase the shelf temperature further (e.g., 20°C) to remove any bound water. Maintain a low chamber pressure. This phase is shorter than primary drying, typically lasting a few hours.
- Final Drying (Optional): For highly sensitive samples, a final drying phase at an even higher temperature (e.g., 30°C) under vacuum may be necessary to achieve the desired residual moisture content.
Remember, these are general guidelines. Always consult the manufacturer's manual and specific protocols for your sample type for precise parameter recommendations.
Effective Compound W Freeze Off Treatment for Plantar Warts: A Guide
You may want to see also
Explore related products
Monitoring Process: Track vacuum levels, temperature, and drying progress via the display screen
The Virtis shelf freeze dryer’s display screen is your command center for precision drying. It provides real-time data on vacuum levels, temperature, and drying progress, allowing you to make informed adjustments and ensure optimal results. Understanding how to interpret this information is critical, as deviations from target parameters can compromise sample integrity. For instance, a sudden spike in temperature might indicate a malfunction in the refrigeration system, while an unstable vacuum level could suggest a leak in the chamber.
Analyzing the display screen requires a systematic approach. Start by familiarizing yourself with the unit’s baseline readings during a calibration run. Note the initial vacuum level (typically around 100 mTorr or lower for freeze-drying) and the shelf temperature, which should match the preset value. During the drying process, monitor the rate of vacuum decline during the sublimation phase—a steady drop indicates efficient ice conversion to vapor. Conversely, a plateau or erratic changes may signal issues like improper sample loading or insufficient pre-freeze temperatures.
Practical tips can enhance your monitoring efficiency. Set alarms for critical thresholds, such as a vacuum level exceeding 200 mTorr or a temperature deviation of ±5°C. Use the screen’s graphical trends to visualize progress over time, identifying anomalies like a sudden temperature spike during secondary drying. For long-duration runs, log data periodically or use the unit’s built-in logging feature if available. This documentation is invaluable for troubleshooting and replicating successful protocols.
Comparatively, manual monitoring methods, such as relying solely on external gauges or visual inspection, lack the precision and immediacy of the display screen. The Virtis system’s automated tracking not only reduces human error but also allows for dynamic control—for example, adjusting the condenser temperature in response to a rising vacuum level. This level of control is particularly beneficial for sensitive samples like pharmaceuticals or biologics, where even minor fluctuations can affect product viability.
In conclusion, mastering the monitoring process via the display screen transforms the Virtis shelf freeze dryer from a passive tool into an active partner in your drying workflow. By staying vigilant and leveraging the screen’s capabilities, you can achieve consistent, high-quality results while minimizing the risk of costly errors. Treat the display as your real-time diagnostic tool, and you’ll unlock the full potential of this advanced equipment.
Glass Shelves in Freezers: Safe, Practical, or Risky Choice?
You may want to see also
Explore related products
Post-Drying Handling: Safely unload, seal, and store dried samples after completing the cycle
Once the freeze-drying cycle is complete, the integrity of your samples hinges on meticulous post-drying handling. Improper unloading, sealing, or storage can compromise months of work, leading to rehydration, contamination, or degradation. This critical phase demands precision, awareness of environmental factors, and adherence to best practices.
Unloading with Care:
Begin by allowing the freeze dryer to cool to room temperature. Prematurely opening the chamber while residual cold persists risks condensation, which can ruin samples. Use clean, powder-free gloves to handle trays and vials, minimizing the risk of particulate contamination. For delicate samples, such as pharmaceuticals or biologics, employ spatulas or tweezers to gently transfer materials, avoiding mechanical stress that could cause fragmentation. Always work in a controlled environment—ideally a biosafety cabinet or laminar flow hood—to prevent airborne contaminants from compromising sample purity.
Sealing for Longevity:
Effective sealing is paramount to preserving sample stability. For vials, use silicone stoppers and aluminum crimp seals, ensuring a tight fit to prevent moisture ingress. Heat-sealing foil or plastic film over trays provides an additional barrier against humidity. Label each container with critical details: sample name, batch number, drying date, and expiration date. For thermolabile samples, avoid heat-based sealing methods; opt for induction sealing or parafilm instead. Vacuum-sealed packaging further enhances protection, particularly for long-term storage or transport.
Storage Conditions Matter:
Freeze-dried samples are hygroscopic, making storage conditions a decisive factor in their shelf life. Store samples in a desiccator containing silica gel or molecular sieves to maintain low humidity levels. For extended preservation, keep samples at -20°C or below, especially for biologics or heat-sensitive materials. Light-sensitive compounds require opaque containers or storage in dark environments. Regularly inspect storage areas for temperature and humidity fluctuations, using data loggers to monitor conditions.
Practical Tips for Success:
Always pre-cool storage containers to minimize temperature shocks when transferring samples. For bulk storage, use moisture-barrier bags with desiccant packets to maintain dryness. Document every step of the post-drying process, including sealing methods and storage conditions, to ensure traceability and reproducibility. Train personnel on proper handling techniques to avoid cross-contamination or mishandling.
By prioritizing precision, cleanliness, and environmental control during post-drying handling, you safeguard the quality and efficacy of your freeze-dried samples, ensuring they remain viable for their intended applications.
Effective Tips for Using the Sharper Image Fat Freezer at Home
You may want to see also
Frequently asked questions
The Virtis Shelf Freeze Dryer is a laboratory instrument used for lyophilization, a process that removes water from materials by freezing and then sublimating the ice under vacuum. It is commonly used in pharmaceutical, biotechnology, and food industries to preserve sensitive materials like drugs, enzymes, and perishable foods.
Samples should be evenly distributed in vials or trays, ensuring they are not overloaded. Pre-freeze the samples at temperatures below their eutectic point (typically -40°C to -80°C) before placing them on the dryer shelves. Properly label and seal the containers to prevent contamination.
First, load the pre-frozen samples onto the shelves and close the chamber door. Start the vacuum pump and gradually reduce the pressure to the desired level (usually below 100 mTorr). Apply heat to the shelves to facilitate sublimation, monitoring the temperature and pressure throughout the process. Once drying is complete, backfill the chamber with dry gas and remove the samples.
Regularly clean the shelves, chamber, and condenser with mild detergents or isopropyl alcohol to remove residue. Inspect and replace gaskets and seals as needed to ensure a proper vacuum seal. Follow the manufacturer’s guidelines for preventive maintenance, including vacuum pump oil changes and filter replacements.
