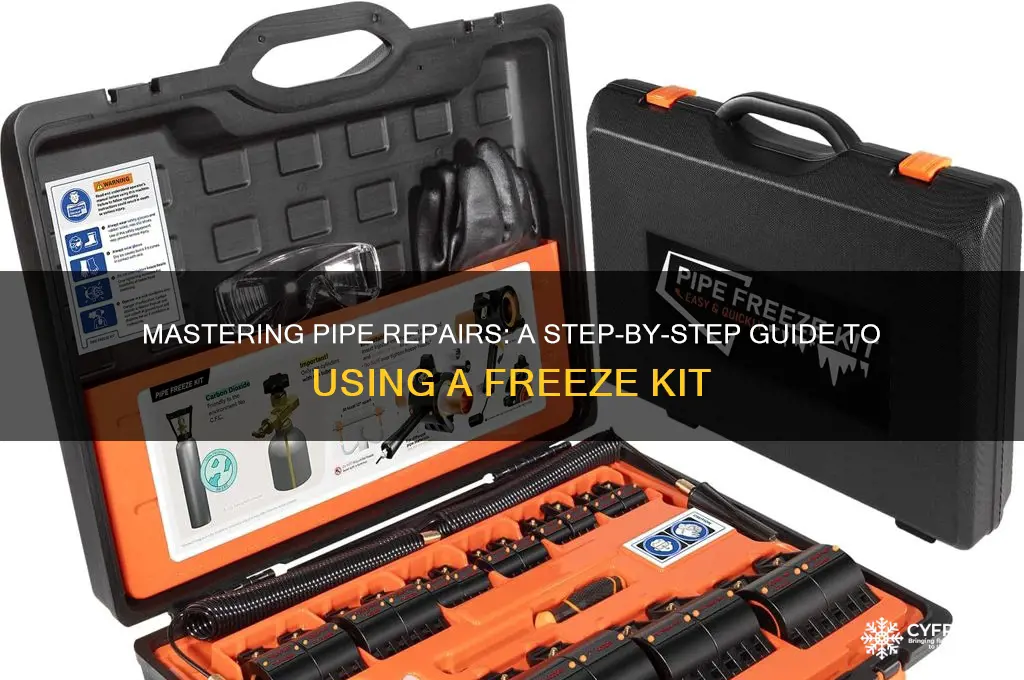

A pipe freeze kit is an essential tool for plumbers and DIY enthusiasts alike, allowing for the temporary isolation of water flow in pipes without shutting off the main water supply. This is particularly useful when repairing or replacing valves, faucets, or sections of piping. To use a pipe freeze kit, start by selecting the appropriate size clamp for your pipe and attaching the freezing jacket securely around the pipe. Connect the jacket to the freezing unit, which typically uses a refrigerant to cool the jacket and freeze the water inside the pipe, creating a solid ice plug that stops the flow. Ensure the area is well-ventilated and follow safety guidelines, as the freezing unit can be hazardous if mishandled. Once the ice plug is formed, you can safely work on the pipe without water leakage, making repairs efficient and mess-free. Always thaw the pipe slowly after completing the work to avoid damage.
| Characteristics | Values |
|---|---|
| Purpose | Temporarily freezes a section of pipe to stop water flow, allowing for repairs or maintenance without shutting off the main water supply. |
| Components | Freeze spray or freezing jacket, hoses, thermometer, insulating material (e.g., foam or cloth), and a clamping mechanism. |
| Steps | 1. Prepare the Area: Turn off the water supply to the affected pipe if possible. Drain the pipe by opening faucets downstream. 2. Insulate Surrounding Area: Wrap insulation around the pipe to prevent freezing in unwanted areas. 3. Apply Freezing Agent: Attach the freezing jacket or spray the freeze spray onto the pipe section to be frozen. 4. Monitor Temperature: Use a thermometer to ensure the pipe reaches freezing temperature (0°C or 32°F). 5. Verify Freeze: Check for ice formation inside the pipe by tapping or using a tool to confirm the section is frozen solid. 6. Perform Repairs: Complete the necessary repairs or maintenance. 7. Thaw the Pipe: Remove the freezing agent and allow the pipe to thaw gradually, or use a thawing kit if needed. |
| Safety Precautions | Wear protective gloves and eyewear. Ensure proper ventilation when using freeze spray. Avoid freezing pipes for extended periods to prevent damage. |
| Limitations | Not suitable for large diameter pipes or pipes with heavy water flow. May not work effectively in extremely cold environments. |
| Alternatives | Using a shut-off valve, installing a temporary bypass, or calling a professional plumber. |
| Environmental Impact | Some freeze sprays contain chemicals that may be harmful to the environment; choose eco-friendly options if available. |
| Cost | Varies depending on the kit and brand, typically ranging from $50 to $200. |
| Availability | Available at hardware stores, plumbing supply stores, and online retailers. |
Explore related products
What You'll Learn
- Prepare the Area: Turn off water supply, clear workspace, and ensure pipe accessibility for freezing
- Attach the Clamp: Secure the freeze clamp tightly around the targeted pipe section
- Connect Hoses: Attach hoses from the freeze unit to the clamp for coolant circulation
- Freeze the Pipe: Activate the unit, allowing coolant to freeze the pipe and isolate the section
- Work and Thaw: Complete repairs, then turn off the unit and remove the clamp after thawing
Prepare the Area: Turn off water supply, clear workspace, and ensure pipe accessibility for freezing
Before you even think about applying the freeze kit, consider the battlefield—your workspace. Turning off the water supply is not just a step; it’s a safeguard against unintended flooding or pressure buildup that could compromise the freezing process. Locate the main shut-off valve—typically near the water meter or where the main line enters your home—and twist it clockwise until it’s fully closed. For smaller repairs, isolating the specific line via a fixture shut-off valve can suffice, but always test by opening a nearby faucet to confirm the flow has ceased. This simple act transforms a live, pressurized system into a static one, ready for intervention.
Clearing the workspace is where practicality meets precision. Remove clutter, tools, and any obstructions around the pipe to create a clean, accessible area. Think of it as setting up a surgical field—every inch of visibility and maneuverability counts. If the pipe is concealed behind drywall or under flooring, this step may involve temporary demolition. Use a utility knife to carefully cut away drywall or pry up floorboards, ensuring minimal damage for easier restoration later. Remember, the freeze kit’s clamps must sit flush against the pipe, so debris, insulation, or even rust can interfere with the seal, reducing freezing efficiency.
Accessibility is the linchpin of a successful freeze. Inspect the pipe for bends, joints, or obstructions that might prevent the freeze kit from clamping securely. Straight sections of pipe are ideal, but if you’re working with a curve, ensure the kit’s design accommodates it. Measure the pipe’s diameter—common sizes are ½ inch, ¾ inch, or 1 inch—and select a freeze kit with compatible clamps. If the pipe is too close to a wall or other structure, consider using spacers or temporarily repositioning adjacent components to create the necessary clearance. A pipe that’s hard to reach or poorly exposed will not only frustrate your efforts but also increase the risk of incomplete freezing.
Finally, think ahead to the freezing process itself. Ensure the pipe is dry and free of moisture, as water on the surface can insulate the pipe and hinder the freeze. Wipe it down with a clean cloth, and if necessary, use a hairdryer on low heat to evaporate any residual dampness. Position the freeze kit’s clamps at least 1 inch apart to allow the refrigerant to circulate effectively, and verify that the connecting hoses are free of kinks or twists. By treating this preparatory phase with the same rigor as the freezing itself, you’ll set the stage for a repair that’s not just effective but also frustration-free.
Roundup After Freezing: Safe Usage Tips and Storage Guidelines
You may want to see also
Explore related products
Attach the Clamp: Secure the freeze clamp tightly around the targeted pipe section
Securing the freeze clamp is a critical step in the pipe freezing process, as it ensures the targeted section is effectively isolated, preventing water flow and enabling safe repairs or modifications. Begin by identifying the exact area of the pipe that requires attention, ensuring it’s free of debris, grease, or insulation that could interfere with the clamp’s grip. Most freeze clamps are designed with adjustable straps or bands to accommodate various pipe diameters, typically ranging from ½ inch to 2 inches, though larger models exist for industrial applications. Position the clamp so its freezing heads are directly opposite each other, ensuring even pressure distribution to avoid stress points that could damage the pipe.
The tightness of the clamp is paramount. Under-tightening risks inadequate freezing, while over-tightening can deform or crack the pipe, particularly in older or brittle materials like galvanized steel or PVC. A practical tip is to tighten the clamp until you feel resistance, then give it an additional quarter-turn to ensure a secure fit. For precision, some kits include torque specifications—for instance, 20-25 ft-lbs for copper pipes—though these are rare in residential kits. Always refer to the manufacturer’s guidelines, as over-tightening can void warranties or compromise the clamp’s integrity.
Comparing clamp designs reveals two primary types: band-style clamps for flexibility and split-jacket clamps for quicker setup. Band-style clamps are ideal for irregular pipe shapes or tight spaces, as their adjustable straps conform to the pipe’s contours. Split-jacket clamps, while faster to attach, require more clearance and are better suited for straight, accessible pipe sections. Regardless of type, ensure the freezing heads are in full contact with the pipe’s surface, as gaps can lead to incomplete freezing and leaks.
A cautionary note: freezing times vary based on pipe material, ambient temperature, and clamp efficiency. Copper pipes freeze faster than PEX or steel due to higher thermal conductivity, typically within 5-10 minutes. Always monitor the process, as leaving the clamp on too long can cause ice buildup that exerts excessive pressure on the pipe. If the clamp feels warm to the touch after activation, it’s a sign of poor contact or insufficient tightening, requiring immediate adjustment.
In conclusion, attaching the freeze clamp demands precision and awareness of both the pipe’s condition and the clamp’s capabilities. By ensuring proper placement, tightness, and contact, you create a reliable seal that facilitates efficient repairs without collateral damage. Treat this step as the linchpin of the freezing process—done correctly, it transforms a potentially messy task into a controlled, professional operation.
Frozen Eye Drops: Safe to Use or Toss After Thawing?
You may want to see also
Explore related products
Connect Hoses: Attach hoses from the freeze unit to the clamp for coolant circulation
Connecting the hoses from the freeze unit to the clamp is a critical step in ensuring effective coolant circulation during a pipe freeze operation. Begin by identifying the correct hose ports on both the freeze unit and the clamp assembly. Typically, the freeze unit will have labeled outlets for coolant supply and return, while the clamp will have corresponding inlets and outlets. Ensure the hoses are free of debris and securely threaded to prevent leaks, as even minor coolant loss can compromise the freezing process.
The process of attaching the hoses requires precision and attention to detail. Start by aligning the hoses with their respective ports, using quick-connect fittings if available. Tighten the connections by hand, then use a wrench to secure them firmly, being careful not to overtighten and risk damaging the threads. For optimal performance, ensure the hoses are straight and free of kinks, as obstructions can reduce coolant flow and extend freeze times. If the system includes a pressure gauge, verify it reads within the recommended range (usually 50–100 psi) before proceeding.
A comparative analysis of hose materials reveals that reinforced rubber or silicone hoses are superior to PVC alternatives due to their flexibility and resistance to freezing temperatures. Rubber hoses, in particular, maintain their integrity under pressure and are less prone to cracking, making them ideal for freeze kits. However, if using PVC, ensure it’s rated for coolant compatibility and avoid bending it sharply, as this can cause weak points. Regardless of material, always inspect hoses for wear or damage before each use, replacing them if necessary to avoid mid-operation failures.
From a practical standpoint, consider the following tips to streamline the hose connection process. First, pre-cool the hoses by running coolant through them for a few minutes before attaching them to the clamp, as this reduces thermal shock and improves efficiency. Second, use hose clamps or zip ties to secure any loose sections to the pipe or work surface, preventing tangling or accidental disconnection. Finally, if working in tight spaces, opt for shorter hoses or extensions to maintain maneuverability without sacrificing coolant flow.
In conclusion, connecting hoses from the freeze unit to the clamp is a straightforward yet vital task that demands careful execution. By selecting the right materials, ensuring secure connections, and employing practical techniques, you can maximize the effectiveness of your pipe freeze kit. Remember, a well-circulated coolant system not only speeds up the freezing process but also minimizes the risk of pipe damage, making this step a cornerstone of successful freeze operations.
Easy Guide to Freezing Pears for Freshness and Convenience Later
You may want to see also
Explore related products
Freeze the Pipe: Activate the unit, allowing coolant to freeze the pipe and isolate the section
Activating the freeze unit is a critical step in isolating a pipe section for repair or maintenance. Once the clamps are securely attached and the hoses are connected, it’s time to engage the freezing mechanism. Most pipe freeze kits use a combination of liquid nitrogen or a proprietary coolant, which is circulated through the clamps to rapidly lower the pipe’s temperature. For copper pipes, the coolant typically reaches -50°F to -70°F, ensuring the water inside freezes solid within 15 to 30 minutes. For larger or thicker-walled pipes, such as steel or cast iron, the process may take longer, and multiple clamps might be necessary to achieve a complete freeze. Always refer to the manufacturer’s guidelines for specific temperature and timing recommendations.
The science behind freezing the pipe is straightforward yet precise. As the coolant circulates through the clamps, it extracts heat from the pipe, causing the water inside to reach its freezing point. The ice formed acts as a natural barrier, isolating the section of the pipe you need to work on. This method is particularly useful for repairs that require a dry environment, such as soldering or replacing a section of pipe. However, it’s essential to monitor the process closely. Over-freezing can cause the pipe to crack, especially in older or brittle materials. Use a temperature gauge to ensure the pipe remains within the safe freezing range, and never leave the unit unattended during operation.
From a practical standpoint, activating the freeze unit requires attention to detail and preparation. Before starting, ensure the area around the pipe is clear of obstructions and that all connections are secure. If using liquid nitrogen, wear insulated gloves to prevent frostbite, as the coolant can reach extremely low temperatures. For DIY users, rental units often come with pre-measured coolant cartridges, simplifying the process. Professionals, however, may opt for bulk coolant systems for larger projects. Regardless of the setup, always perform a test run to confirm the freeze is effective before proceeding with any repairs.
Comparing this method to traditional shutoff valves highlights its advantages. While valves can fail or leak, freezing the pipe guarantees a watertight seal, eliminating the risk of accidental water release. It’s also non-invasive, preserving the integrity of the pipe system. However, it’s not without limitations. Freezing is less effective on pipes with heavy water flow or those buried in insulated walls, where heat transfer is slower. In such cases, combining the freeze kit with a temporary valve closure can improve results. Ultimately, mastering the activation of the freeze unit is a skill that pays off in efficiency and reliability for any plumbing task.
Is the Deep Freeze Bundle Still Usable? A Comprehensive Guide
You may want to see also
Explore related products
Work and Thaw: Complete repairs, then turn off the unit and remove the clamp after thawing
Once repairs are completed, the final steps in using a pipe freeze kit are critical to restoring normal water flow and preventing further issues. Turning off the freeze unit and allowing the pipe to thaw naturally is a delicate process that requires patience and precision. Rushing this stage can lead to residual ice or uneven thawing, which may damage the pipe or compromise the repair. Always follow the manufacturer’s guidelines for thawing times, typically ranging from 15 to 30 minutes, depending on the pipe’s size and material. For copper pipes, which conduct heat more efficiently, thawing may occur faster than in PEX or galvanized steel pipes.
The removal of the freeze clamp should only happen after the pipe is fully thawed and water begins to flow freely. To confirm thawing, place your hand near the frozen section or listen for the sound of running water. If the pipe remains cold or water flow is restricted, allow additional time for thawing. Forcing the clamp off prematurely can cause stress fractures or dislodge the repaired area. A practical tip is to gently tap the pipe with a rubber mallet to dislodge any remaining ice before removing the clamp, but avoid excessive force.
Comparing this step to other repair processes highlights its importance. Unlike soldering or gluing, which involve immediate post-repair handling, the thawing phase acts as a buffer, ensuring the pipe stabilizes before returning to service. This contrasts with methods like epoxy putty repairs, where curing times are fixed and less dependent on external conditions. The thawing process, however, is environmentally influenced—colder ambient temperatures may extend thawing time, while warmer conditions expedite it.
A persuasive argument for meticulous thawing lies in its role as the final safeguard against leaks or structural damage. Skipping or hastening this step undermines the entire repair, potentially leading to costly callbacks or water damage. Professionals often emphasize that patience here is not just a virtue but a necessity. For DIY users, this phase is a test of discipline; for plumbers, it’s a standard practice that distinguishes a job well done from one prone to failure.
In conclusion, the "Work and Thaw" phase is a blend of science and patience, requiring adherence to timing, observation, and careful execution. By respecting the thawing process and confirming the pipe’s readiness, users ensure the longevity of their repairs and the integrity of the plumbing system. Treat this step as the final checkpoint before declaring the job complete, and the results will speak for themselves.
Propane Freezer Efficiency: Full-Size Model Propane Consumption Explained
You may want to see also
Frequently asked questions
A pipe freeze kit is a tool used to temporarily freeze and block water flow in a pipe, allowing you to repair or replace a section without shutting off the main water supply. Use it for tasks like fixing leaks, replacing valves, or installing new fixtures.
First, wrap the freezing jacket around the pipe and secure it tightly. Connect the jacket to the freezing unit, then turn on the unit to activate the freezing process. Ensure the pipe is completely frozen before starting any work, typically indicated by no water flow when tested.
It’s recommended to keep the pipe frozen for no longer than 30–60 minutes to avoid damaging the pipe or surrounding materials. Always complete your repair work promptly and thaw the pipe gradually afterward.
