Connor Mitchell

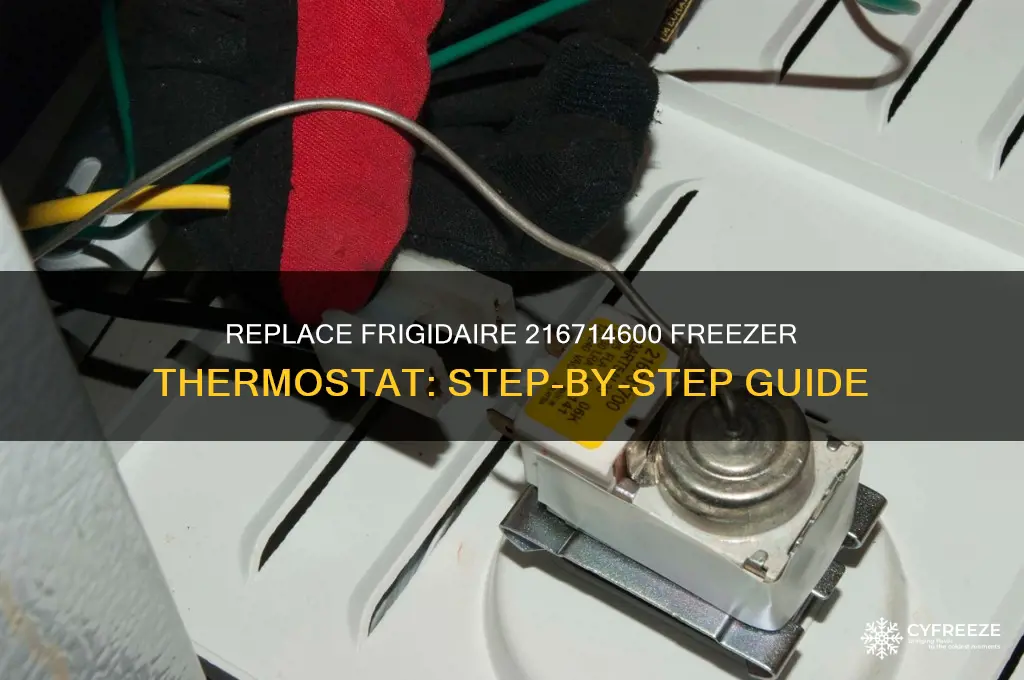

Replacing the Frigidaire 216714600 temperature control thermostat in your freezer is a straightforward task that can help restore proper temperature regulation and extend the appliance's lifespan. This thermostat is a critical component responsible for maintaining the desired temperature inside the freezer, and over time, it may wear out or malfunction, leading to inconsistent cooling. To replace it, you’ll need basic tools like a screwdriver and a multimeter to test continuity. Start by unplugging the freezer for safety, then locate the thermostat, typically found behind the control panel or inside the freezer compartment. Carefully disconnect the wires, remove the old thermostat, and install the new Frigidaire 216714600 unit, ensuring all connections are secure. Finally, reassemble any panels and test the freezer to confirm it’s functioning correctly. Following these steps will ensure a smooth replacement process and reliable performance.
| Characteristics | Values |
|---|---|
| Part Number | 216714600 |
| Compatibility | Frigidaire freezers and refrigerators |
| Function | Controls and regulates freezer temperature |
| Tools Required | Screwdriver (Phillips and flathead), needle-nose pliers, work gloves |
| Safety Precautions | Unplug the appliance before starting, wear gloves to avoid sharp edges |
| Steps to Replace | 1. Unplug the freezer. 2. Locate the thermostat (usually inside the control panel or behind the freezer). 3. Remove the control panel cover if necessary. 4. Disconnect the wires from the old thermostat (note their positions). 5. Remove screws holding the thermostat in place. 6. Install the new thermostat, reconnect wires, and secure it. 7. Reattach the control panel cover. 8. Plug in the freezer and test the temperature control. |
| Difficulty Level | Moderate (basic DIY skills required) |
| Time Required | 30-60 minutes |
| Replacement Part Availability | Available at appliance parts stores, online retailers (e.g., Amazon, Frigidaire parts website) |
| Cost of Replacement Part | $20-$50 (varies by retailer) |
| Warranty | Typically 1 year from the manufacturer (check with retailer) |
| Additional Tips | Ensure the new thermostat is the correct model for your appliance. Test the freezer after replacement to ensure proper functionality. |
Explore related products
What You'll Learn
- Gather Tools and Parts: Screwdriver, new thermostat, gloves, and safety gear
- Unplug Freezer: Ensure safety by disconnecting power before starting
- Access Thermostat: Remove freezer panels to locate the thermostat
- Disconnect Wires: Label and detach wires from the old thermostat
- Install New Thermostat: Attach wires, secure thermostat, and reassemble panels
Gather Tools and Parts: Screwdriver, new thermostat, gloves, and safety gear
Before diving into the replacement of your Frigidaire 216714600 temperature control thermostat, it's crucial to assemble the necessary tools and parts. This step is often overlooked, but it's the foundation of a smooth and safe repair process. A screwdriver, specifically a Phillips-head or flat-head depending on your freezer's screws, is indispensable for accessing the thermostat. Ensure you have the correct type to avoid stripping screws, which can complicate the task.
Equally important is the new thermostat itself. Verify compatibility by cross-referencing the model number (216714600) with your freezer’s specifications or consulting the manufacturer’s website. Purchasing from a reputable supplier ensures quality and reduces the risk of malfunctions post-installation. Gloves are another essential item, protecting your hands from sharp edges and cold surfaces during the repair. Opt for insulated gloves if your freezer has been running, as components may still be cold even after unplugging.
Safety gear should never be an afterthought. Safety glasses shield your eyes from potential debris or accidental tool slippage, while a non-slip mat provides stability when working on slippery kitchen floors. If you’re uncomfortable with electrical components, consider having a voltage tester on hand to confirm the freezer is unplugged and safe to work on. These precautions transform a potentially hazardous task into a manageable DIY project.
Finally, organize your workspace efficiently. Lay out all tools and parts within arm’s reach to minimize interruptions. A small container or magnetic tray can keep screws and small components from getting lost. By preparing meticulously, you not only save time but also reduce the likelihood of errors, ensuring a successful thermostat replacement. This level of readiness is what separates a frustrating repair from a satisfying accomplishment.
Kale's Cold Resilience: Surviving Freezing Temperatures in Your Garden
You may want to see also
Explore related products
Unplug Freezer: Ensure safety by disconnecting power before starting
Before you embark on replacing the Frigidaire 216714600 temperature control thermostat in your freezer, the first and most critical step is to unplug the appliance. This simple action is the cornerstone of safety, ensuring that you avoid electrical hazards that could lead to injury or damage. Electricity and water, common elements in a freezer environment, are a dangerous combination, and even a small oversight can have serious consequences. By disconnecting the power, you eliminate the risk of electric shock, short circuits, or accidental activation of the freezer during the repair process.
From a practical standpoint, unplugging the freezer is straightforward but requires attention to detail. Locate the power cord and follow it to the electrical outlet. Grip the plug firmly and pull it straight out of the socket. Avoid tugging on the cord itself, as this can damage the wiring. If your freezer is hardwired into the electrical system, you’ll need to switch off the corresponding circuit breaker in your home’s electrical panel. Label the breaker if necessary to ensure you’ve turned off the correct one. Double-check that the freezer is no longer powered by attempting to open the door and listening for the compressor to activate—silence confirms the power is off.
While this step may seem obvious, it’s often overlooked in the eagerness to begin a repair. Consider the scenario where you remove the thermostat cover and inadvertently touch exposed wires while the freezer is still live. Even low-voltage systems can deliver a painful shock, and higher voltage systems pose a more severe risk. Additionally, working on a powered appliance increases the likelihood of damaging sensitive components, potentially turning a simple repair into a costly replacement. Unplugging the freezer is not just a precaution—it’s a non-negotiable safety measure.
For those who frequently tackle DIY repairs, developing a habit of unplugging appliances before starting work is essential. Think of it as the equivalent of putting on a seatbelt before driving. It takes minimal effort but provides maximum protection. If you’re working with a helper, communicate this step clearly to ensure everyone understands the importance of a power-free environment. Even if you’re confident in your skills, treating every repair as if it’s your first can prevent complacency and reinforce safe practices.
In summary, unplugging your freezer before replacing the Frigidaire 216714600 thermostat is a small but vital step that safeguards both you and the appliance. It’s a simple action with profound implications, transforming a potentially hazardous task into a safe and manageable repair. By prioritizing this step, you set the foundation for a successful and accident-free project.
Freezing Temperatures: Effective Solution to Eradicate Fungus Gnat Larvae?
You may want to see also
Explore related products
Access Thermostat: Remove freezer panels to locate the thermostat
To access the thermostat in your Frigidaire freezer, you'll need to remove the interior panels, a task that requires precision and care to avoid damaging the appliance. Start by unplugging the freezer to ensure safety. The panels are typically held in place by screws or clips, so gather a screwdriver and possibly a pry tool. Begin with the upper panel, locating the screws along the top edge or sides. Remove these screws and gently lift the panel, being cautious of any wiring connected to the thermostat. If the panel is clipped, use the pry tool to carefully disengage the clips, applying even pressure to prevent cracking.
Once the upper panel is removed, you’ll likely encounter insulation or additional layers. Carefully set aside the panel and proceed to the lower section. The thermostat is often located near the evaporator coils, so follow the wiring from the control panel to trace its path. If your model has a rear panel, remove it next by unscrewing or unclipping it, ensuring you keep track of screw locations for reassembly. This step may require maneuvering around the freezer’s cooling system, so work methodically to avoid dislodging any components.
As you expose the thermostat, take note of its orientation and connections. Most thermostats are attached with screws and connected via wire harnesses. Before proceeding with the replacement, label the wires or take a photo to ensure correct reconnection. If the thermostat is encased in a protective housing, remove it by unscrewing the cover. This process demands patience, as forcing any component can lead to costly repairs.
A practical tip: use a magnetic tray to hold screws and small parts, preventing loss during the process. Additionally, if the panels are stubborn or stuck, avoid excessive force—instead, inspect for hidden fasteners or consult the freezer’s manual for model-specific guidance. By systematically removing each panel and tracing the wiring, you’ll successfully locate the thermostat, setting the stage for a seamless replacement.
Running Your Car in Freezing Temps: Optimal Gear Duration Explained
You may want to see also
Explore related products
Disconnect Wires: Label and detach wires from the old thermostat
Before you begin the process of replacing your Frigidaire 216714600 temperature control thermostat, it's crucial to address the wiring. The old thermostat is connected to your freezer via a series of wires, each serving a specific function. These wires are typically color-coded, but their arrangement can vary depending on the model and previous repairs. To avoid confusion and ensure a smooth reinstallation, labeling these wires is a critical step.
Labeling the Wires: Start by examining the wiring harness connected to the old thermostat. You'll notice several wires, often with colors like red, blue, yellow, and white. Using a label maker or small pieces of tape, clearly mark each wire with its corresponding terminal or function. For instance, the red wire might be connected to the power terminal, while the blue wire controls the compressor. If the wires aren't color-coded, refer to your freezer's manual or take a photo of the current setup for reference. This step is essential, as it prevents the frustration of deciphering wire connections during reinstallation.
Detaching the Wires: Once labeled, carefully detach each wire from the old thermostat. Most connections are secured with simple screw terminals or push-on connectors. For screw terminals, use a screwdriver to loosen the screws and gently pull the wire free. With push-on connectors, grasp the wire close to the connector and pull firmly but gently to release it. Avoid tugging on the wire itself, as this can cause damage. As you detach each wire, place it in a safe area, ensuring the labels remain visible. This organized approach will make reconnecting the wires to the new thermostat a straightforward task.
A common mistake during this process is rushing, which can lead to mixed-up wires or accidental damage. Take your time and double-check each label before detaching the wire. If you encounter any wires that seem stuck or difficult to remove, inspect the connector for any locking mechanisms or consult the manual for specific instructions. Remember, the goal is to preserve the integrity of the wiring harness to ensure your new thermostat functions correctly.
By meticulously labeling and detaching the wires, you're setting the foundation for a successful thermostat replacement. This step might seem tedious, but it's a crucial investment in the overall efficiency and safety of your freezer repair project. With the wires properly managed, you can proceed with confidence, knowing that the reinstallation process will be significantly smoother.
Freezing Temps and Alcohol: How Cold Affects Your Drinks
You may want to see also
Explore related products
Install New Thermostat: Attach wires, secure thermostat, and reassemble panels
Attaching the wires to your new Frigidaire 216714600 thermostat is a delicate but straightforward process. Begin by identifying the wire color coding, typically matching the labels on both the thermostat and the freezer’s wiring harness. Most models use standard colors: red for power, white for the temperature sensor, and blue or yellow for the compressor. Strip about ¼ inch of insulation from each wire end using a wire stripper, ensuring no exposed strands are frayed. Insert each wire into its corresponding terminal on the thermostat, tightening the screws securely but not overly tight to avoid damaging the connections. Double-check the wiring diagram provided with the thermostat to confirm accuracy before proceeding.
Securing the thermostat in place is the next critical step. Position the thermostat onto the mounting bracket, aligning the screw holes carefully. Use the provided screws or those from the old thermostat to fasten it securely. Avoid over-tightening, as this can crack the plastic housing. Ensure the thermostat sits flush against the bracket to maintain proper contact with the evaporator coils, which is essential for accurate temperature sensing. If your model includes a foam gasket, place it between the thermostat and the bracket to insulate and stabilize the unit.
Reassembling the freezer panels requires patience and attention to detail. Start by reattaching the inner panel, ensuring all clips or screws are aligned correctly. Press firmly around the edges to snap the panel into place, listening for the satisfying click that indicates a secure fit. Next, reattach the outer panel, taking care not to pinch any wires or components. If your freezer has a control panel overlay, peel off the protective film and align it precisely over the thermostat before securing it. Test the door’s alignment and ensure all panels are seated properly to prevent air leaks, which can compromise the freezer’s efficiency.
Throughout this process, keep safety and precision in mind. Always unplug the freezer before beginning any work to avoid electrical hazards. Use a flashlight if needed to inspect tight spaces, and consider taking photos during disassembly to aid in reassembly. If you encounter resistance while reattaching panels, double-check for misaligned clips or obstructions rather than forcing them into place. Once reassembled, plug the freezer back in, set the thermostat to the desired temperature, and monitor it for the next 24 hours to ensure it’s functioning correctly. This methodical approach ensures a successful replacement and restores your freezer’s performance.
Can Antifreeze Coolant Withstand Freezing Temperatures? Facts Revealed
You may want to see also
Frequently asked questions
You will need a Phillips screwdriver, a flathead screwdriver, and possibly needle-nose pliers to disconnect wires or remove clips.
Remove the freezer’s interior panel or control panel cover, depending on the model. The thermostat is typically located behind these panels.
This is a DIY-friendly task if you’re comfortable with basic tools and following instructions. However, if you’re unsure, consult a professional to avoid damage.
If the freezer is too warm or too cold despite correct settings, or if the compressor runs constantly, the thermostat may be faulty. Test it with a multimeter or replace it to confirm.
