Michael Hayes

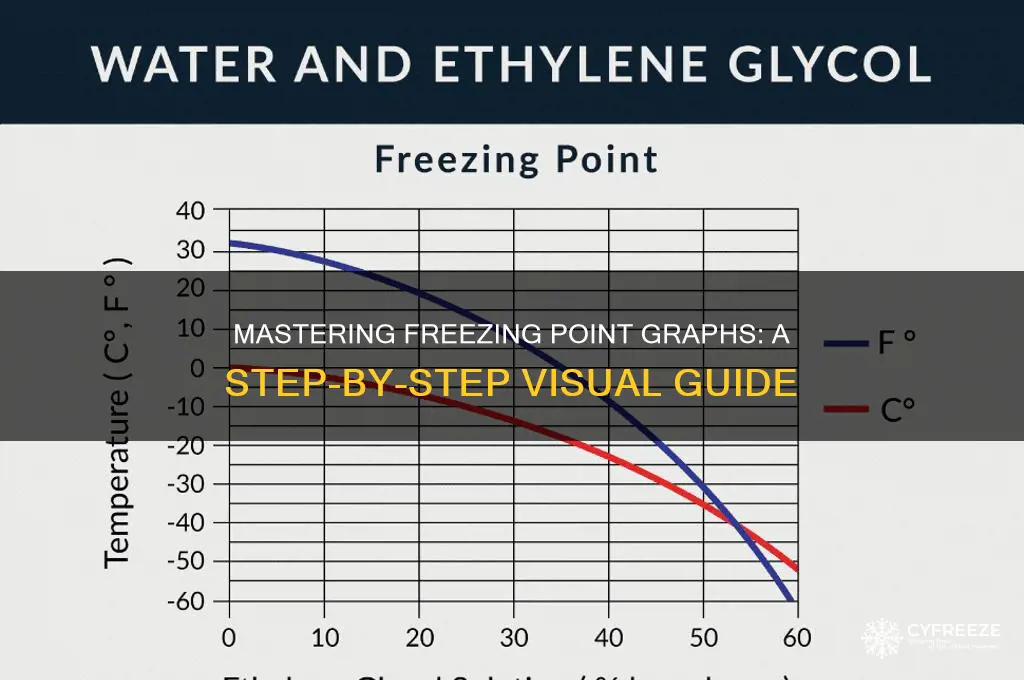

Graphing freezing points involves plotting the temperature at which a substance transitions from a liquid to a solid state against a variable such as solute concentration or pressure. This process is crucial in fields like chemistry and materials science, as it helps understand the effects of impurities or external conditions on a substance's phase behavior. Typically, the freezing point is plotted on the y-axis, while the independent variable (e.g., solute concentration) is plotted on the x-axis. The resulting graph often shows a linear relationship, allowing for the determination of important parameters like the molal freezing point depression constant. Accurate graphing requires precise experimental data and careful consideration of factors such as purity and measurement techniques.
| Characteristics | Values |
|---|---|
| Data Required | Freezing point temperatures of a substance at various concentrations or pressures |
| Graph Type | Line graph or scatter plot |
| X-axis | Concentration (molarity, mass percent, etc.) or Pressure (atm, kPa, etc.) |
| Y-axis | Freezing Point (°C, K, or °F) |
| Trend | Freezing point typically decreases with increasing concentration (colligative property) |
| Slope | Negative slope indicating the relationship between concentration and freezing point depression |
| Intercepts | X-intercept represents the concentration at which freezing point is 0°C (for water) |
| Data Sources | Experimental data, literature values, or online databases (e.g., NIST Chemistry WebBook) |
| Software Tools | Excel, Google Sheets, Python (Matplotlib, Seaborn), R, or specialized software like OriginPro |
| Latest Data Example | Freezing points of aqueous solutions of NaCl, sucrose, or ethanol at various concentrations (data from CRC Handbook of Chemistry and Physics, 102nd Edition, 2021) |
| Applications | Determining molecular weights, studying colligative properties, and analyzing phase diagrams |
| Best Practices | Label axes clearly, include units, add a title, and provide a legend if multiple substances are plotted |
| Example Equation | ΔT_f = i * K_f * m (where ΔT_f is freezing point depression, i is van't Hoff factor, K_f is cryoscopic constant, and m is molality) |
| Latest Research | Advances in cryoscopy techniques, high-pressure freezing point measurements, and computational modeling of freezing point behavior (as of 2023) |
Explore related products
What You'll Learn
- Understanding Colligative Properties: Learn how solutes affect freezing point depression in solutions
- Calculating Freezing Point Depression: Use the formula ΔTf = Kf * m * i for precise graphs
- Plotting Freezing Point Data: Graph temperature vs. time to identify the freezing point plateau
- Analyzing Eutectic Points: Study binary mixtures and their unique freezing point behaviors
- Experimental Techniques: Use tools like differential scanning calorimetry for accurate freezing point measurements
Understanding Colligative Properties: Learn how solutes affect freezing point depression in solutions
The presence of solutes in a solvent lowers its freezing point, a phenomenon known as freezing point depression. This effect is directly proportional to the number of solute particles, not their mass or chemical identity. For every mole of solute added to a kilogram of solvent, the freezing point decreases by a constant value known as the cryoscopic constant (Kf). For water, Kf is 1.86 °C/m. This principle is the cornerstone of understanding how solutes influence the physical properties of solutions.
To graph freezing points, begin by plotting the freezing point of the pure solvent on the y-axis against the corresponding molality (moles of solute per kilogram of solvent) on the x-axis. As you add solute, record the new freezing point and plot it. The resulting line will slope downward, illustrating the linear relationship between molality and freezing point depression (ΔTf = i * Kf * m, where i is the van’t Hoff factor, accounting for dissociation of solutes). For example, adding 0.5 moles of NaCl (i = 2) to 1 kg of water reduces the freezing point by 1.86 °C * 2 * 0.5 = 1.86 °C. Ensure your graph includes a clear title, labeled axes, and a trendline with its equation.
When analyzing your graph, note deviations from linearity, which may indicate solute impurities, non-ideal behavior, or incorrect van’t Hoff factor assumptions. For instance, sugars like glucose (i = 1) will yield a shallower slope compared to electrolytes like calcium chloride (i = 3). Practical applications of this knowledge include antifreeze solutions in car radiators, where ethylene glycol is added to lower the freezing point of water, preventing ice formation in cold climates. Aim for a molality of 0.5 m to achieve a freezing point depression of ~0.93 °C, sufficient for moderate winters.
To maximize accuracy, calibrate your thermometer and use a controlled cooling environment. For educational settings, start with simple solutes like NaCl or sucrose, and gradually introduce more complex scenarios. Always verify the van’t Hoff factor for each solute, as it significantly impacts calculations. For instance, a 0.5 m solution of NaCl and a 0.5 m solution of CaCl₂ will depress the freezing point by 1.86 °C and 5.58 °C, respectively, due to their differing dissociation behaviors. This hands-on approach not only reinforces theoretical understanding but also highlights the practical implications of colligative properties in everyday life.
Do All Liquids Freeze? Exploring the Science of Freezing Points
You may want to see also
Explore related products
Calculating Freezing Point Depression: Use the formula ΔTf = Kf * m * i for precise graphs
Graphing freezing point depression requires precision, and the formula ΔTf = Kf * m * i is your compass. This equation quantifies the lowering of a solvent's freezing point when a solute is added. ΔTf represents the freezing point depression, Kf is the cryoscopic constant (specific to the solvent), m is the molality of the solution (moles of solute per kilogram of solvent), and i is the van't Hoff factor (accounts for the number of particles the solute dissociates into).
Let’s break it down step-by-step. First, determine the molality (m) by dividing the moles of solute by the mass of solvent in kilograms. For instance, dissolving 0.1 moles of NaCl in 1 kg of water yields a molality of 0.1 m. Next, identify the van't Hoff factor (i). For NaCl, which dissociates into two ions (Na⁺ and Cl⁻), i = 2. Finally, multiply these values by the cryoscopic constant (Kf for water is 1.86 °C/m). The result, ΔTf, is the degree by which the freezing point drops.
Caution: Accuracy hinges on correct units and assumptions. Molality, not molarity, is critical since it’s temperature-independent. Also, the van't Hoff factor assumes complete dissociation, which may not hold for weak electrolytes or non-ideal solutions. For example, a 0.1 m solution of sucrose (i = 1) in water would depress the freezing point by ΔTf = 1.86 °C/m * 0.1 m * 1 = 0.186 °C, while a 0.1 m NaCl solution would depress it by 0.372 °C due to its higher i value.
To graph this data effectively, plot ΔTf on the y-axis against molality (m) on the x-axis. Each solvent’s Kf and solute’s i will yield a linear relationship, allowing you to predict freezing point depression for various concentrations. For instance, a graph of water with different solutes will show steeper slopes for solutes with higher i values, visually emphasizing their greater impact on freezing point depression.
In practice, this method is invaluable in fields like food science (e.g., calculating antifreeze concentrations in ice cream) or chemistry (studying colligative properties). By mastering ΔTf = Kf * m * i, you not only ensure precise graphs but also gain a tool to predict and control phase transitions in real-world applications.
Solid Content's Impact on Freezing Point: A Comprehensive Analysis
You may want to see also
Explore related products
Plotting Freezing Point Data: Graph temperature vs. time to identify the freezing point plateau
Graphing temperature versus time is a fundamental technique for identifying the freezing point of a substance, a critical step in fields like chemistry, food science, and materials engineering. The key lies in observing the distinctive plateau that forms on the graph during the phase transition from liquid to solid. This plateau represents the period when the substance absorbs heat energy to break intermolecular bonds, resulting in a temporary halt in temperature decrease despite continued cooling. Recognizing this feature allows for precise determination of the freezing point, typically defined as the midpoint of the plateau.
To effectively plot freezing point data, begin by setting up an experiment with accurate temperature and time measurements. Use a calibrated thermometer or temperature probe capable of detecting changes within ±0.1°C, and record data at regular intervals—every 30 seconds is ideal for most substances. For example, when analyzing a solution of water and a known solute (e.g., 0.5 molal NaCl), start cooling the sample from 5°C and log temperature readings until well below the expected freezing point. Ensure consistent stirring to maintain thermal equilibrium and prevent supercooling, which can skew results.
The resulting graph will typically show a steady temperature decline followed by a horizontal or nearly horizontal segment—the freezing point plateau. This plateau’s duration and stability depend on factors like solute concentration, cooling rate, and sample purity. For instance, a 0.1 molal sucrose solution might exhibit a plateau lasting 2–3 minutes, while a 0.5 molal NaCl solution could plateau for 5–7 minutes due to its higher freezing point depression. Analyzing the plateau’s shape and duration provides insights into the substance’s thermal behavior and composition.
Caution must be exercised when interpreting freezing point graphs, as anomalies like supercooling or inconsistent cooling rates can distort results. Supercooling, where the liquid remains below its freezing point without solidifying, appears as an abrupt temperature rise once nucleation occurs. To mitigate this, seed the sample with a small crystal of the solute or gently agitate the container during cooling. Additionally, ensure the cooling mechanism (e.g., ice bath or refrigeration unit) maintains a consistent rate to avoid artificial plateaus caused by temperature fluctuations.
In conclusion, plotting temperature versus time is a powerful method for identifying freezing points, offering both precision and insight into a substance’s properties. By focusing on the plateau, researchers can quantify freezing point depression, assess solute concentration, or validate material purity. Practical tips, such as regular data logging and controlled cooling, enhance accuracy, while awareness of potential pitfalls ensures reliable results. Mastery of this technique empowers scientists to unlock critical information from thermal behavior data.
Mastering Delta T: How to Calculate Freezing Point Depression Easily
You may want to see also
Explore related products
Analyzing Eutectic Points: Study binary mixtures and their unique freezing point behaviors
Binary mixtures often exhibit a peculiar phenomenon known as the eutectic point, where the freezing point of the mixture is lower than that of either pure component. This occurs at a specific composition ratio, creating a distinct minimum on the freezing point curve. To graph this behavior, plot the freezing point (°C) on the y-axis against the mole fraction of one component on the x-axis. For example, in a system of water (A) and ethanol (B), the eutectic point typically appears at a mole fraction of approximately 0.85 for water, with a freezing point around -20°C, significantly lower than pure water’s 0°C or pure ethanol’s -114°C.
Analyzing eutectic points requires precise experimental data collection. Prepare a series of binary mixtures with varying compositions, cooling each sample gradually while monitoring temperature. Record the exact temperature at which solidification begins—this is the freezing point. For instance, a mixture with 20% ethanol by mass might freeze at -5°C, while a 50% mixture could freeze at -30°C. Plot these data points to observe the characteristic "V-shaped" curve, with the eutectic point at the curve’s minimum. Ensure accuracy by using a calibrated thermometer and maintaining consistent cooling rates to avoid supercooling.
The eutectic point has practical implications, particularly in industries like food preservation and metallurgy. For example, adding 20% salt to water lowers its freezing point to -7°C, preventing ice crystal formation in frozen foods. In metallurgy, eutectic alloys like solder (60% tin, 40% lead) melt and solidify at a single temperature, making them ideal for low-temperature applications. When graphing, label the eutectic composition clearly and annotate its freezing point to highlight its significance. This visual representation aids in predicting mixture behavior under specific conditions.
To refine your analysis, compare experimental data with theoretical phase diagrams. The Clapeyron equation or Gibbs phase rule can predict eutectic compositions, but real-world deviations often occur due to impurities or non-ideal interactions. For instance, a binary mixture of benzene and acetone may show a eutectic point at 50:50 mole ratio, but experimental results might shift slightly due to trace solvents. Always include error bars on your graph to account for variability and ensure transparency in your findings. This comparative approach bridges theory and practice, enhancing the reliability of your analysis.
Calculating Freezing Point: A Volume-Based Approach Explained
You may want to see also
Explore related products
Experimental Techniques: Use tools like differential scanning calorimetry for accurate freezing point measurements
Differential scanning calorimetry (DSC) stands as a cornerstone technique for precise freezing point determination, offering unparalleled accuracy in thermal analysis. This method operates by measuring the heat flow into or out of a sample as it undergoes phase transitions, such as freezing. By comparing this heat flow to a reference, DSC identifies the exact temperature at which a substance freezes, often with precision within ±0.1°C. For instance, when analyzing a solution of 10% NaCl in water, DSC can pinpoint the freezing point depression caused by the solute, providing data critical for fields like cryobiology and food science.
To employ DSC effectively, follow these steps: first, prepare your sample by placing 5–10 mg of the substance into an aluminum pan, ensuring it is hermetically sealed to prevent contamination or evaporation. Next, program the DSC instrument to cool the sample at a controlled rate, typically 5–10°C per minute, while maintaining a nitrogen atmosphere to minimize oxidative interference. During the experiment, the instrument records the heat flow curve, which will exhibit a distinct exothermic peak corresponding to the freezing point. Post-analysis, use software to integrate the peak area and determine the onset temperature, which signifies the freezing point with high reliability.
Despite its robustness, DSC requires careful consideration of potential pitfalls. One common issue is sample inhomogeneity, which can skew results. To mitigate this, ensure thorough mixing of solutions and use a consistent sample mass. Another challenge is baseline drift, often caused by impurities or instrument instability. Calibrating the DSC with high-purity standards, such as indium or zinc, before each run can address this. Additionally, for aqueous solutions, the presence of supercooling can complicate freezing point detection. In such cases, seeding the sample with a small crystal of the pure solvent can help initiate crystallization at the correct temperature.
Comparatively, DSC outshines traditional methods like the freezing point osmometer in both precision and versatility. While osmometers rely on colligative properties and are limited to dilute solutions, DSC can handle a wide range of concentrations and even complex mixtures. For example, in pharmaceutical research, DSC is used to study the freezing behavior of drug formulations containing excipients, where traditional methods would fail. This adaptability makes DSC indispensable for applications requiring high accuracy and detailed thermal characterization.
In conclusion, mastering DSC for freezing point measurements involves a blend of meticulous sample preparation, instrument calibration, and data interpretation. By adhering to best practices and understanding its limitations, researchers can harness this technique to unlock insights into the thermal behavior of materials. Whether investigating the cryoprotective effects of solutes or optimizing food preservation processes, DSC provides a reliable and precise tool for graphing freezing points with confidence.
Discovering the Freezing Point of a Compound: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The freezing point is the temperature at which a substance transitions from a liquid to a solid state. Graphing freezing points helps visualize how factors like solute concentration, pressure, or impurities affect this temperature, providing insights into the substance's properties and behavior.
Plot the temperature (y-axis) against the independent variable (e.g., solute concentration, x-axis). Each data point represents a freezing point measurement, and connecting the points creates a curve that shows the relationship between the variables.
A freezing point depression graph shows how the addition of a solute lowers the freezing point of a solvent. The slope of the line or curve can be used to determine the molal freezing point depression constant (Kf) or the number of particles the solute produces in solution.
Label the y-axis as "Freezing Point Temperature (°C or K)" and the x-axis with the variable being tested (e.g., "Solute Concentration (m)" or "Pressure (atm)"). Include units for clarity and accuracy.
Graphing calculators, spreadsheet software (e.g., Excel, Google Sheets), or specialized graphing tools (e.g., GraphPad Prism, MATLAB) can be used. Ensure the software allows for accurate plotting, trendline fitting, and labeling of axes and data points.
