Determining the freezing point from a graph involves analyzing a cooling curve, which plots temperature against time as a substance transitions from a liquid to a solid state. The freezing point is identified at the plateau or horizontal portion of the curve where the temperature remains constant despite continued heat removal. This plateau represents the phase change, during which the substance releases latent heat of fusion. By locating the temperature at which this plateau occurs, one can accurately determine the freezing point of the material. This method is widely used in chemistry and materials science to study the thermal properties of substances.
| Characteristics | Values |
|---|---|
| Graph Type | Cooling curve or heating curve |
| Freezing Point Identification | Temperature at which the curve becomes horizontal (plateau) during cooling, or the temperature at which the curve shows a sharp increase in temperature during heating |
| Phase Change Indication | The horizontal portion of the curve represents the phase change from liquid to solid (freezing) |
| Temperature Range | The freezing point is the temperature at which the plateau occurs, typically within a narrow range (e.g., ±0.5°C) |
| Slope Before Freezing | Negative slope during cooling, indicating heat loss |
| Slope After Freezing | Negative slope during cooling, indicating continued heat loss, but at a different rate |
| Heat of Fusion | The energy absorbed or released during the phase change can be calculated from the area under the curve during the plateau |
| Purity of Substance | A sharp, well-defined plateau indicates a pure substance, while a broad or irregular plateau may suggest impurities |
| Pressure Effect | Freezing point may be affected by pressure, but this is typically negligible in standard laboratory conditions |
| Common Units | Temperature in °C or K, time in minutes or seconds |
| Example Substances | Water (0°C), ethanol (-114.1°C), benzene (5.5°C) |
| Experimental Considerations | Accurate temperature measurement, controlled cooling/heating rate, and proper graphing techniques are essential for precise freezing point determination |
Explore related products
What You'll Learn
- Identify the Plateau Region: Locate the flat line where temperature stabilizes during freezing
- Determine the Onset Point: Find the temperature where the curve starts to deviate
- Analyze the Slope Change: Note the point where the slope becomes horizontal
- Use the Extrapolation Method: Extend the baseline to intersect the freezing curve
- Verify with Thermal Data: Cross-check with heat flow or enthalpy data for accuracy
Identify the Plateau Region: Locate the flat line where temperature stabilizes during freezing
The plateau region on a freezing point graph is a critical indicator of the substance's freezing point. This flat line represents the temperature at which the substance transitions from a liquid to a solid state, and it's essential to identify this region accurately. When examining a cooling curve, look for the point where the temperature remains constant despite the continued removal of heat. This is the hallmark of the plateau region, where the energy is being used to change the state of the substance rather than lowering its temperature.

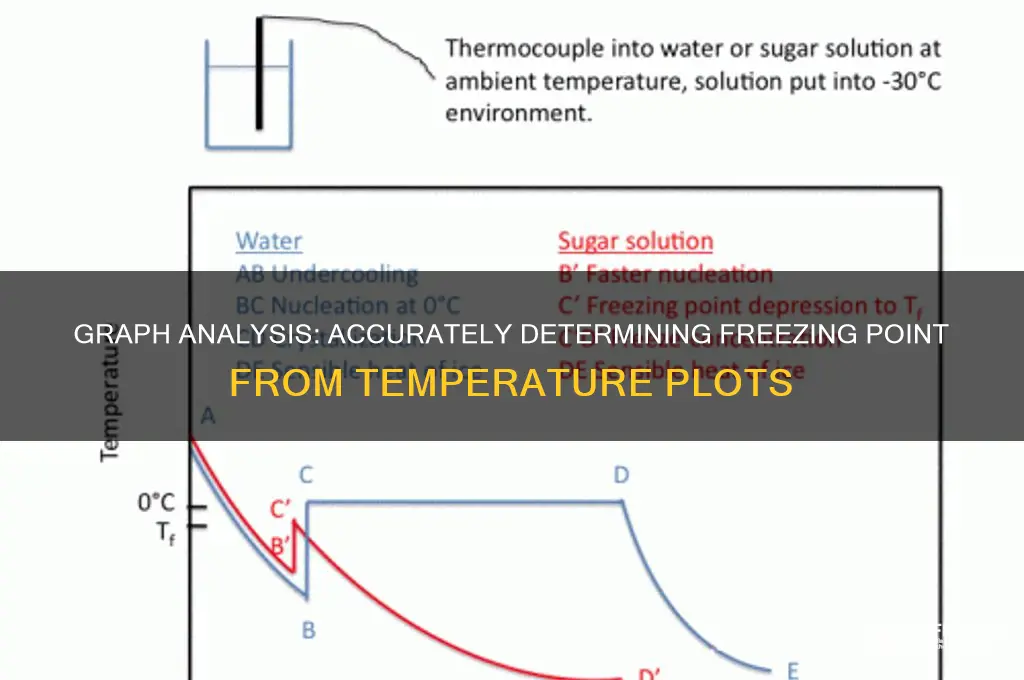

In a typical freezing point experiment, a known mass of a substance is cooled at a constant rate, and its temperature is recorded over time. As the substance approaches its freezing point, the cooling curve will exhibit a distinct plateau. For instance, when cooling a 0.1 M solution of sodium chloride (NaCl) in water, the temperature will drop steadily until it reaches approximately -0.56°C, at which point it will remain constant for a period. This constant temperature corresponds to the freezing point of the solution, and the duration of the plateau is proportional to the amount of solute present. The longer the plateau, the greater the quantity of solute, as more energy is required to freeze the solution.
To accurately identify the plateau region, it's crucial to minimize experimental errors. Ensure that the cooling rate is constant and that the temperature probe is properly calibrated. A cooling rate of 1-2°C per minute is recommended for most substances, as this allows for a clear and distinct plateau to form. Additionally, use a sufficient amount of sample, typically 10-20 mL, to ensure that the temperature change is measurable and consistent. When analyzing the graph, look for a clear break in the slope, where the temperature curve transitions from a steep descent to a flat line. This transition point marks the beginning of the plateau region.
A comparative analysis of different cooling curves can provide valuable insights into the freezing behavior of various substances. For example, comparing the cooling curves of pure water and a 0.1 M NaCl solution reveals distinct differences in their plateau regions. Pure water exhibits a sharp plateau at 0°C, while the NaCl solution shows a broader plateau at a lower temperature. This comparison highlights the colligative property of freezing point depression, where the addition of solute lowers the freezing point of the solvent. By examining these differences, one can develop a deeper understanding of the underlying principles governing freezing point behavior.
In practical applications, identifying the plateau region is essential for determining the purity of a substance or the concentration of a solution. For instance, in the pharmaceutical industry, freezing point depression is used to assess the potency of drugs, as impurities can alter the freezing point of a substance. By accurately measuring the plateau region, analysts can calculate the concentration of the active ingredient and ensure product quality. To achieve this, use high-precision temperature sensors and data logging software to record temperature readings at regular intervals, typically every 10-30 seconds. This level of detail enables a precise determination of the plateau region and, consequently, the freezing point of the substance.
