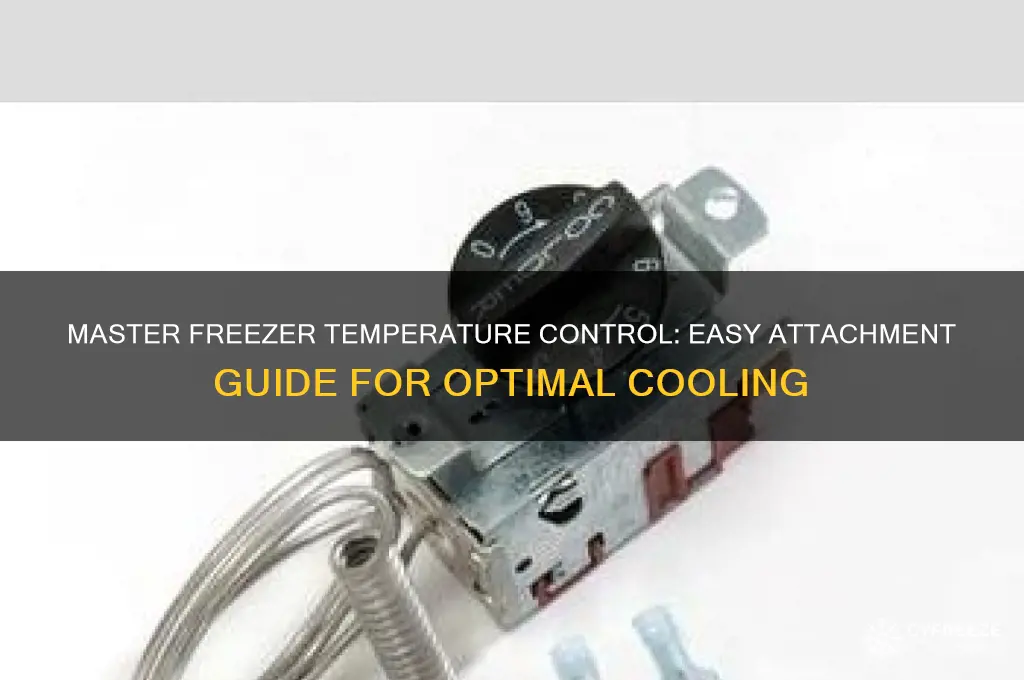

Attaching a temperature control to a freezer is a practical upgrade that enhances precision and efficiency in maintaining optimal storage conditions. This process involves selecting a compatible temperature controller, typically a digital thermostat, and integrating it with the freezer’s existing cooling system. The controller monitors the internal temperature and activates or deactivates the compressor as needed to achieve the desired setpoint. Installation requires basic electrical knowledge, including disconnecting the freezer’s original thermostat, wiring the new controller to the compressor and power source, and calibrating it for accurate readings. Properly attaching a temperature control not only ensures consistent temperatures but also extends the lifespan of stored items by preventing fluctuations that could compromise their quality.
| Characteristics | Values |
|---|---|
| Compatibility | Ensure the temperature control unit is compatible with your freezer model. Check the voltage, amperage, and connector type. |
| Tools Required | Screwdriver, wire strippers, electrical tape, multimeter (optional), and the new temperature control unit. |
| Safety Precautions | Unplug the freezer before starting any work. Wear safety gloves and eye protection. |
| Steps | 1. Locate the Existing Control: Identify the current temperature control unit inside the freezer. 2. Disconnect Power: Unplug the freezer or turn off the circuit breaker. 3. Remove Old Control: Unscrew and detach the existing control unit. 4. Install New Control: Attach the new control unit, ensuring proper wiring connections. 5. Test Connections: Use a multimeter to verify correct wiring. 6. Reassemble: Secure the control unit and reattach any panels. 7. Reconnect Power: Plug in the freezer or turn on the circuit breaker. 8. Calibrate: Set the desired temperature and allow the freezer to stabilize. |
| Wiring Connections | Match wire colors or labels from the old control to the new one. Common connections include power (L1, L2), sensor (S), and ground (G). |
| Calibration | Follow the manufacturer’s instructions to calibrate the new temperature control unit for accurate readings. |
| Troubleshooting | If the freezer doesn’t cool properly, check wiring connections, sensor placement, and power supply. |
| Professional Help | If unsure, consult a professional technician to avoid damage or safety risks. |
| Cost | Varies based on the control unit model and brand, typically ranging from $20 to $100. |
| Time Required | Approximately 30 minutes to 1 hour, depending on experience and freezer model. |
Explore related products
What You'll Learn
- Choosing the Right Temperature Controller: Select a controller compatible with your freezer's voltage and temperature range
- Wiring the Controller: Connect the controller to the freezer's compressor and power source safely
- Calibrating the Sensor: Ensure the temperature sensor provides accurate readings for precise control
- Mounting the Controller: Secure the controller in a convenient, accessible location near the freezer
- Testing and Adjustments: Verify functionality, adjust settings, and monitor performance for optimal temperature control
Choosing the Right Temperature Controller: Select a controller compatible with your freezer's voltage and temperature range
Selecting a temperature controller that aligns with your freezer's voltage and temperature range is the cornerstone of a successful installation. Voltage compatibility is non-negotiable—a mismatch can lead to electrical failure, damage, or even safety hazards. For instance, a controller rated for 110V won't function on a 220V system, and vice versa. Always verify your freezer's voltage (check the label or manual) and choose a controller that matches. Similarly, the temperature range must align with your freezer's operational limits. If your freezer operates between -20°C and 10°C, a controller with a narrower range (e.g., 0°C to 8°C) will be ineffective. Opt for a controller that covers the full spectrum of your freezer's capabilities, with a buffer of 5–10°C on either end for flexibility.
Consider the type of controller as well. Analog controllers are cost-effective and straightforward but lack precision. Digital controllers, while pricier, offer greater accuracy and often include features like alarms and data logging. For commercial or scientific applications, a PID (Proportional-Integral-Derivative) controller provides superior stability by minimizing temperature fluctuations. For example, a PID controller can maintain a lab freezer at -80°C ±0.5°C, critical for preserving sensitive samples. If your freezer is used for food storage, a simpler digital controller with a ±2°C tolerance may suffice.
Installation compatibility is another critical factor. Some controllers are designed for specific freezer models or brands, while others are universal. Check if the controller requires additional wiring, relays, or adapters. For instance, a controller with a built-in relay can directly switch the compressor on/off, whereas others may need an external relay if the freezer's compressor draws high current. If you're unsure, consult the manufacturer or a technician to avoid compatibility issues.
Finally, safety and certifications should not be overlooked. Ensure the controller meets relevant standards (e.g., UL, CE) to guarantee it’s been tested for safety and reliability. For outdoor or humid environments, choose a controller with a waterproof or weather-resistant rating (IP65 or higher). A controller with overvoltage or overcurrent protection adds an extra layer of safety, preventing damage during power surges.
In summary, choosing the right temperature controller requires careful consideration of voltage, temperature range, controller type, installation compatibility, and safety features. By matching these specifications to your freezer’s needs, you’ll ensure efficient, reliable, and safe temperature control. Always prioritize compatibility over cost to avoid costly mistakes and ensure long-term functionality.
Adjusting Your Top Freezer Temperature: A Simple Step-by-Step Guide
You may want to see also
Explore related products
Wiring the Controller: Connect the controller to the freezer's compressor and power source safely
Connecting a temperature controller to a freezer’s compressor and power source requires precision and safety. Begin by identifying the compressor’s relay contacts, typically located on the start capacitor or relay board. The controller will interrupt the power flow to the compressor, allowing it to regulate temperature by cycling the unit on and off. Ensure the controller’s rating matches the freezer’s voltage and amperage to avoid damage or malfunction. For instance, a 120V freezer with a 5-amp compressor demands a controller rated for at least 6 amps to handle the load safely.
Next, disconnect the freezer from its power source to prevent electrical hazards. Locate the wires leading to the compressor and cut them, stripping about ½ inch of insulation from each end. Connect the controller’s output wires in series with the compressor wires using wire nuts or crimp connectors. The controller should be wired such that power flows through it before reaching the compressor. For example, if the freezer’s compressor wires are black and red, connect one wire to the controller’s output terminal and the other to the freezer’s power input, ensuring the controller acts as a switch in the circuit.
Grounding is critical for safety and functionality. Attach the controller’s ground wire to the freezer’s chassis or a dedicated ground terminal. This prevents electrical faults and ensures the controller operates reliably. If the freezer lacks a ground terminal, install a grounding lug on the chassis and secure the wire with a ring terminal. Always use UL-listed wires and connectors to meet safety standards.
Test the setup before reapplying power. Set the controller to a temperature slightly above the freezer’s current reading and observe if the compressor cycles correctly. If the compressor fails to shut off, double-check the wiring for continuity and correct any misconnections. Conversely, if the compressor doesn’t start, verify the controller’s power supply and ensure the input voltage matches the freezer’s requirements.
Finally, secure all connections with electrical tape or heat shrink tubing to protect against moisture and vibration. Mount the controller in a dry, accessible location, avoiding areas prone to condensation or extreme temperatures. Label the wires for future reference, especially if troubleshooting or upgrading the system. By following these steps, you ensure a safe, efficient connection that extends the freezer’s lifespan and maintains consistent temperatures.
Washing in Winter: Using Your Washer in Freezing Temperatures Safely
You may want to see also
Explore related products
Calibrating the Sensor: Ensure the temperature sensor provides accurate readings for precise control
Accurate temperature control in a freezer hinges on a properly calibrated sensor. Even a slight deviation can compromise food safety or scientific experiments. A sensor drifting by just 2°F can accelerate bacterial growth in food, while in laboratory settings, it could invalidate research results. Calibration ensures the sensor’s readings align with the actual temperature, providing the foundation for precise control.
Begin by identifying the sensor’s calibration method. Some sensors have built-in adjustment screws or digital interfaces, while others require external calibration tools. For mechanical sensors, locate the calibration screw near the dial face. For digital sensors, consult the manual for calibration procedures, often involving a sequence of button presses or software adjustments. Always disconnect power to the freezer before attempting physical adjustments to avoid electrical hazards.
To calibrate, place a high-precision thermometer (accurate to ±0.5°F) in the freezer alongside the sensor. Allow both devices to stabilize for at least 30 minutes. Compare readings; if the sensor deviates, adjust it accordingly. For mechanical sensors, turn the calibration screw clockwise to increase the reading or counterclockwise to decrease it. For digital sensors, follow the manufacturer’s instructions to input the correction value. Repeat the process until the sensor matches the reference thermometer.
Regular calibration is essential, especially in environments with fluctuating ambient temperatures or frequent freezer door openings. Aim to calibrate every 3–6 months or whenever readings seem inconsistent. Keep a calibration log to track adjustments and identify trends over time. This proactive approach ensures the sensor remains reliable, safeguarding the freezer’s contents and maintaining operational efficiency.
Finally, consider environmental factors that can affect sensor accuracy. Placement is critical—ensure the sensor is positioned away from the freezer door, cooling coils, or fans, as these areas experience temperature fluctuations. Additionally, avoid exposing the sensor to direct sunlight or drafts if the freezer is in a shared space. By addressing these variables and maintaining calibration, you guarantee the sensor delivers the precise readings necessary for optimal temperature control.
Optimal Walk-In Freezer Temperature Guide for Food Safety and Efficiency
You may want to see also
Explore related products
Mounting the Controller: Secure the controller in a convenient, accessible location near the freezer
Choosing the right spot for your temperature controller is crucial for both functionality and convenience. Avoid areas prone to moisture or extreme temperature fluctuations, as these can damage the electronics. Opt for a location within arm’s reach of the freezer, ideally at eye level, to ensure easy monitoring and adjustments. Wall-mounting near the freezer’s power outlet is ideal, as it minimizes cable clutter and keeps the controller within the same electrical circuit, simplifying installation.
Mounting the controller securely requires the right tools and materials. Use a sturdy bracket or enclosure designed for electronic devices, ensuring it’s rated for the weight of your controller. For wall mounting, drill pilot holes and use appropriate anchors for your wall type (e.g., drywall, concrete). Secure the bracket with screws, ensuring it’s level and firmly attached. If using an adhesive mount, choose a high-strength option like VHB tape, but test its hold before fully relying on it, especially in humid environments.
Accessibility isn’t just about location—it’s about usability. Ensure the controller’s display and buttons are unobstructed and face outward for clear visibility. If the freezer is in a busy area, consider a lockable enclosure to prevent accidental adjustments. For commercial or shared spaces, label the controller clearly to avoid confusion. Position it away from high-traffic zones to prevent accidental knocks or damage, but close enough to the freezer to maintain a clean, professional appearance.
A well-mounted controller enhances both performance and longevity. Proper placement reduces the risk of electrical hazards by keeping cables tidy and out of the way. It also ensures the controller remains stable, minimizing vibrations that could affect its readings. By prioritizing convenience and safety in your mounting approach, you’ll create a seamless integration of the controller into your freezer setup, making temperature management effortless and efficient.
Concrete Curing in Freezing Temps: Challenges, Solutions, and Best Practices
You may want to see also
Explore related products
Testing and Adjustments: Verify functionality, adjust settings, and monitor performance for optimal temperature control
Once the temperature control unit is installed, the real work begins: ensuring it functions as intended. Start by setting the desired temperature and allowing the freezer to stabilize for at least 24 hours. Use a reliable, calibrated thermometer placed in the center of the freezer to verify the actual temperature against the control unit’s reading. Discrepancies of more than 2°F (1°C) indicate a calibration issue, which can often be resolved by adjusting the control unit’s offset settings, typically found in advanced configurations. For example, if the thermometer reads 0°F but the control unit shows -2°F, adjust the offset by +2°F to align the readings.
Adjusting settings requires patience and a methodical approach. Begin with small increments—no more than 1°F (0.5°C) at a time—and wait 4–6 hours between adjustments to observe the impact. Over-adjusting can lead to temperature swings, such as frost buildup or partial thawing, which compromise food safety. For instance, if the freezer is too warm, lower the setpoint gradually, checking for consistent cooling without excessive ice accumulation. Conversely, if it’s too cold, raise the setpoint slightly and monitor for even temperature distribution. Keep a log of adjustments and corresponding temperatures to identify trends and fine-tune the system effectively.
Monitoring performance is critical to maintaining optimal temperature control. Implement a routine check schedule—daily for the first week, then weekly thereafter—to catch deviations early. Pay attention to external factors like ambient temperature, door frequency, and load size, as these can influence freezer performance. For example, a freezer in a hot garage may require a lower setpoint during summer months to compensate for heat infiltration. Use data logging tools or smart thermometers with alerts to track temperature fluctuations over time, especially during power outages or extreme weather events.
Finally, consider the long-term reliability of the system. Periodic maintenance, such as cleaning condenser coils and checking door seals, ensures the freezer operates efficiently. If performance degrades despite adjustments, inspect the control unit for loose connections or damaged wiring. In some cases, upgrading to a more advanced control system with features like defrost cycles or remote monitoring may be warranted. By combining meticulous testing, strategic adjustments, and vigilant monitoring, you can achieve precise and consistent temperature control tailored to your freezer’s unique demands.
Can Plants Survive Cold? Freezing Temperatures and Plant Health Explained
You may want to see also
Frequently asked questions
Use a thermostat specifically designed for refrigeration units, such as a mechanical or digital thermostat, depending on your freezer model and desired accuracy.
Locate the compressor’s wiring harness, disconnect the existing thermostat wires, and connect the new temperature control’s wires to the corresponding terminals (usually labeled as "L1" and "L2").
Basic installations can be done DIY if you’re comfortable with electrical work, but consult a professional if you’re unsure or dealing with complex freezer systems to avoid damage or safety risks.
