Pouring concrete in freezing temperatures is a challenging but not impossible task. When temperatures drop below 40°F (4°C), the water in the concrete mix begins to freeze, hindering the hydration process essential for curing. This can result in weaker, more porous, and less durable concrete. However, with proper planning and techniques, such as using heated materials, accelerators, and protective measures like insulated blankets or windbreaks, concrete can be successfully placed and cured in cold weather. Understanding the risks and implementing best practices is crucial to ensure the structural integrity and longevity of the concrete in freezing conditions.
| Characteristics | Values |
|---|---|
| Feasibility | Possible with proper precautions and techniques |
| Minimum Temperature | Typically above -7°C (20°F) for proper curing |
| Required Precautions | Use heated enclosures, insulated blankets, or heated mixing water |
| Special Concrete Mix | Accelerated set concrete or low-temperature resistant mixes |
| Curing Time | Extended curing time required compared to normal temperatures |
| Strength Development | Slower strength gain; may take up to 72 hours to reach initial set |
| Risk of Freezing | Concrete must not freeze within the first 24 hours after placement |
| Recommended Practices | Keep materials and tools warm, use windbreaks, and monitor temperature |
| Admixtures | Use anti-freeze admixtures (e.g., calcium chloride) to lower freezing point |
| Surface Protection | Cover fresh concrete with insulated blankets or straw to retain heat |
| Monitoring | Continuously monitor temperature of concrete and ambient conditions |
| Strength at Maturity | Can achieve full design strength with proper cold-weather concreting practices |
| Common Challenges | Increased risk of cracking, reduced workability, and delayed setting |
| Standards/Guidelines | Follow ACI 306 (American Concrete Institute) for cold-weather concreting |
Explore related products
What You'll Learn

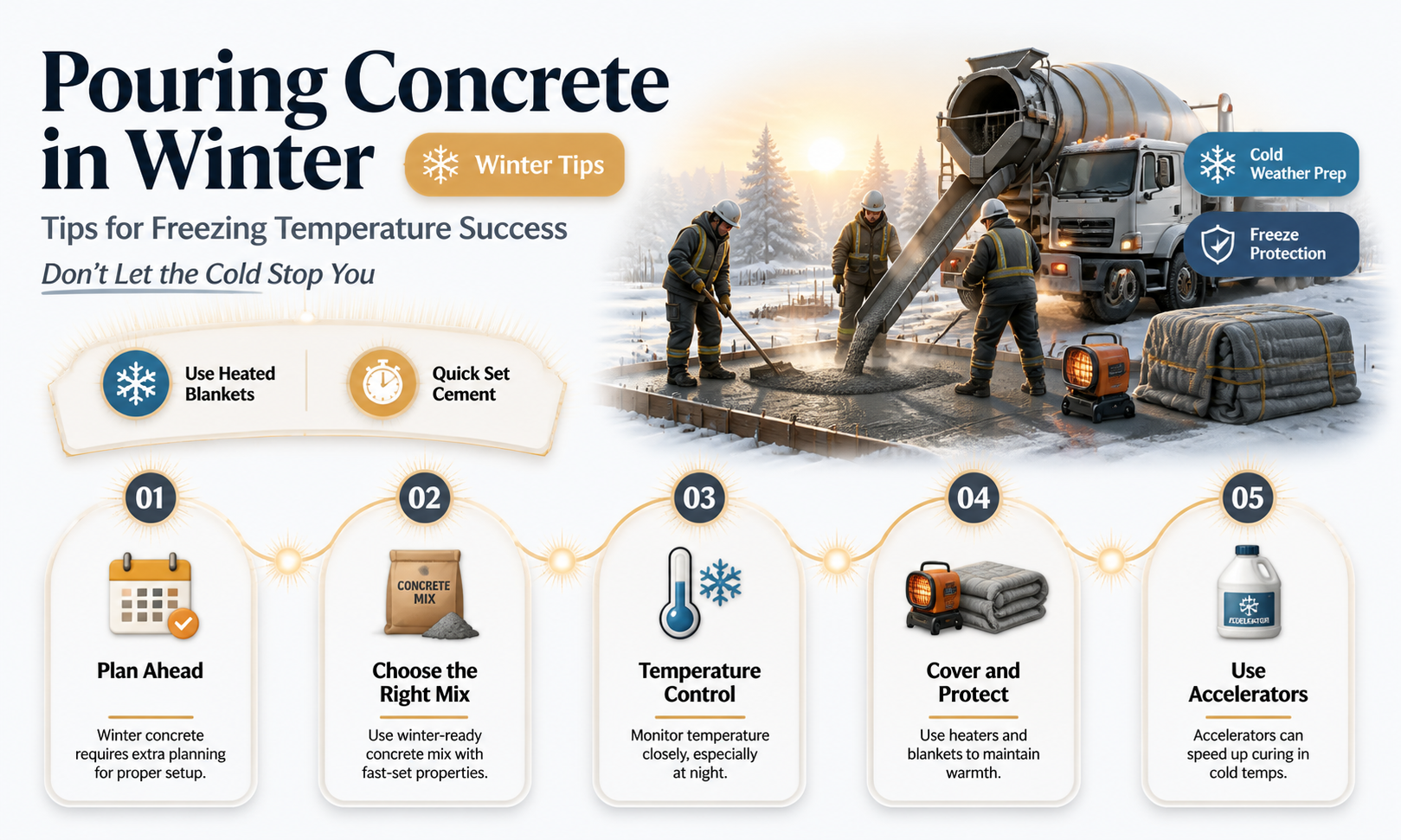

Cold Weather Concreting Techniques
Concrete can set and cure in cold weather, but it requires careful planning and specific techniques to ensure strength and durability. The key challenge is preventing the concrete from freezing before it reaches its initial set, typically within the first 24 hours. When temperatures drop below 40°F (4°C), the hydration process slows, increasing the risk of weak or damaged concrete. However, with the right strategies, successful cold weather concreting is achievable.
One critical technique is heating the concrete mix itself. Ready-mix suppliers can adjust the temperature of the water and aggregates to ensure the concrete is delivered at a minimum of 65°F (18°C). For smaller projects, adding accelerators like calcium chloride (at a dosage of 2% by weight of cement) can speed up setting time without compromising strength. Always consult the supplier to ensure compatibility with the mix design, as excessive accelerators can lead to cracking.
Protecting the concrete from freezing after placement is equally vital. Insulated blankets or heated enclosures can maintain optimal temperatures during curing. For larger pours, such as slabs or foundations, consider using heated forms or incorporating heated pipes within the subgrade. These methods ensure the concrete remains above freezing until it achieves sufficient strength, typically 500 psi (3.4 MPa), which usually takes about 48 hours under ideal conditions.
Timing and weather monitoring play a significant role in cold weather concreting. Schedule pours during the warmest part of the day and avoid placing concrete when temperatures are expected to drop below 20°F (-6°C). Use windbreaks and tents to shield the work area from cold winds and precipitation. After placement, monitor the concrete’s temperature using thermocouples to ensure it doesn’t drop below 50°F (10°C) during the first 24 hours.
Finally, proper aftercare is essential for cold weather concrete. Avoid exposing it to freezing temperatures or moisture until it has cured sufficiently. If snow or ice is forecast, remove it carefully without damaging the surface. Applying a curing compound can also help retain moisture and heat, promoting proper hydration. With these techniques, cold weather concreting can yield results as strong and durable as those achieved in milder conditions.
Can LCD TVs Survive Freezing Temps? Risks and Precautions
You may want to see also
Explore related products
Accelerators for Faster Curing
Pouring concrete in freezing temperatures is a challenge, but accelerators can significantly speed up curing, ensuring structural integrity despite the cold. These admixtures work by increasing the rate of hydration, the chemical reaction that hardens concrete. Common accelerators include calcium chloride, calcium nitrate, and non-chloride alternatives like sodium nitrite or formate-based products. Each type has its advantages and limitations, making the choice dependent on specific project needs and environmental conditions.
Calcium chloride is one of the most effective accelerators, reducing curing time by up to 50% and allowing concrete to set in temperatures as low as 20°F (-6.7°C). However, it is corrosive to reinforcing steel, making it unsuitable for reinforced concrete structures. Dosage typically ranges from 2% to 4% by weight of cement, but exceeding this can weaken the concrete. For non-reinforced applications like sidewalks or pavements, calcium chloride remains a cost-effective solution. Always verify compatibility with local building codes, as some regions restrict its use due to corrosion concerns.
Non-chloride accelerators, such as formate-based products, offer a safer alternative for reinforced concrete. These admixtures are less corrosive and maintain strength development even in subzero temperatures. Dosage varies by product, but generally ranges from 1% to 3% by weight of cement. While more expensive than calcium chloride, they are ideal for critical structures like bridges or foundations. Proper mixing is crucial; follow manufacturer guidelines to ensure even distribution and avoid clumping, which can lead to inconsistent curing.
In addition to accelerators, combining strategies enhances effectiveness. Insulating blankets or heated enclosures can maintain warmth around the concrete, complementing the accelerator’s action. For large pours, consider using heated mixing water at temperatures up to 140°F (60°C) to jumpstart hydration. Monitor temperature closely, as rapid temperature changes can cause cracking. Pairing accelerators with proper insulation and temperature control ensures concrete achieves adequate strength before freezing conditions set in.
Selecting the right accelerator requires balancing speed, cost, and long-term durability. For small-scale projects, calcium chloride may suffice, but for structural applications, non-chloride options are safer. Always test admixtures with your specific concrete mix to confirm compatibility and performance. With careful planning and the right accelerator, pouring concrete in freezing temperatures becomes not just possible, but practical.
Can Freshly Poured Cement Crack in Freezing Temperatures?
You may want to see also
Explore related products
Protective Measures Against Frost
Concrete setting is a chemical reaction that slows significantly below 40°F (4°C), risking weak, porous structures if frozen during curing. Preventing frost damage requires proactive measures tailored to the pour's timing, scale, and environmental conditions. For small projects like sidewalks, plan pours during daytime highs above freezing and cover fresh concrete with insulated blankets rated for subzero temperatures. Larger pours, such as foundations, demand more aggressive strategies: heated enclosures using propane-powered salamander heaters or hydronic systems circulating warm water through hoses embedded in sand layers beneath the forms.
Material selection plays a critical role in frost protection. Admixtures like calcium chloride or non-chloride accelerators reduce set times, allowing concrete to gain strength before temperatures drop. Dosage varies by product—typically 2% of cement weight for accelerators—but always follow manufacturer guidelines to avoid over-acceleration, which can cause cracking. For cold-weather pours, use low-heat cement to minimize thermal shock, and opt for finer aggregates, which increase hydration surface area, aiding strength development in lower temperatures.
Monitoring conditions is non-negotiable. Use digital thermometers to track ambient and concrete temperatures, ensuring the latter stays above 50°F (10°C) for the first 24–48 hours. Windbreaks and steam curing (applying low-pressure steam through hoses) are effective for large-scale projects, but steam must be controlled to prevent overheating. For flatwork, apply a liquid membrane-forming curing compound after initial set (typically 4–8 hours) to retain moisture and insulate against frost.
Post-pour care is equally vital. Avoid loading or exposing concrete to freezing conditions for at least 3 days, even if it appears set. If frost forms on the surface, remove it gently with lukewarm water and cover the area until temperatures rise. For emergency repairs in freezing conditions, use specialized cold-weather mixes with high early strength, but note these are temporary solutions—permanent fixes require thawed substrates and proper curing.
Comparing methods reveals trade-offs: heated enclosures are costly but reliable, while insulated blankets are affordable but less effective for prolonged cold. Accelerators speed setting but may compromise long-term durability if misused. The optimal strategy balances project constraints with environmental demands, ensuring concrete achieves 500 psi compressive strength before freezing exposure—a threshold critical for structural integrity.
Can Tea Plants Survive Frost? Exploring Cold Tolerance in Tea Cultivation
You may want to see also
Explore related products
Ideal Concrete Mix for Cold
Pouring concrete in freezing temperatures is a delicate dance, requiring a mix that resists the urge to set prematurely while still achieving strength. The ideal cold-weather concrete mix prioritizes heat generation and hydration control.
Incorporate a Type III high-early-strength cement. This cement type releases heat more rapidly during hydration, combating the cold and accelerating initial set times. Aim for a minimum cement content of 350 kg/m³ to ensure sufficient heat development.
Accelerators are your allies in this scenario. Calcium chloride, dosed at 2% by weight of cement, effectively reduces set times without compromising long-term strength. However, be cautious: excessive accelerator can lead to rapid stiffening and reduced workability. For a more controlled approach, consider non-chloride accelerators, which are less prone to causing corrosion in reinforced concrete.
Opt for a low water-to-cement ratio, ideally below 0.50. This minimizes the risk of freezing within the mix and reduces bleeding, a common issue in cold weather concreting. Utilize heated mixing water, maintained at around 40°C (104°F), to provide an initial thermal boost and prevent freezing during transportation.
Aggregate selection is crucial. Choose coarse aggregates with low moisture content to prevent freezing and ensure proper bonding with the cement paste. Pre-heating aggregates to around 30°C (86°F) can further enhance the mix's thermal properties.
Finally, remember that proper curing is paramount. Protect the freshly placed concrete from freezing temperatures for at least the first 24 hours. Use insulated blankets, heated enclosures, or even straw to maintain a temperature above 5°C (41°F) during the critical early stages of hydration.
Freezer Temperature Guide: When Cold Becomes Too Cold for Food Safety
You may want to see also
Explore related products
Curing Time in Freezing Conditions
Concrete curing in freezing temperatures demands a nuanced approach, as the process is inherently temperature-dependent. Below 40°F (4°C), hydration—the chemical reaction that gives concrete its strength—slows dramatically. At 25°F (-4°C), it halts entirely. This doesn’t mean concrete cannot cure in the cold, but it requires careful management to prevent surface cracking, reduced strength, and compromised durability. The key lies in protecting the concrete from freezing during its initial curing phase, typically the first 24 to 48 hours, when it is most vulnerable.
To extend the curing time effectively in freezing conditions, consider using accelerated curing methods. One proven technique is the application of heated enclosures or insulated blankets to maintain the concrete’s temperature above 50°F (10°C). For larger projects, circulating hot air or using heated water for mixing can also help. Admixtures like calcium chloride or non-chloride accelerators can be added to the mix, reducing setting times and enhancing early strength development. However, dosage is critical: calcium chloride should not exceed 2% by weight of cement to avoid corrosion of steel reinforcement. Always consult manufacturer guidelines for specific admixture usage.
A comparative analysis reveals that while traditional curing methods like moist curing are effective in mild climates, they fall short in freezing conditions. Instead, steam curing or the use of hydraulic heating systems offers a more reliable alternative. Steam curing, for instance, can achieve 50% of concrete’s strength in just 24 hours, compared to 7 days under normal conditions. However, this method requires specialized equipment and expertise, making it more suitable for industrial or large-scale projects. For smaller applications, insulating blankets paired with a low-temperature concrete mix may be more practical.
Practical tips for curing in freezing conditions include monitoring weather forecasts to schedule pours during warmer periods and ensuring the substrate is free of ice and snow. If freezing temperatures are unavoidable, delay finishing operations until the concrete has hardened sufficiently. Once cured, avoid exposing the concrete to freeze-thaw cycles without proper sealing, as this can lead to scaling and cracking. For long-term durability, apply a breathable sealant after the concrete has reached its design strength, typically 28 days.
In conclusion, curing concrete in freezing conditions is feasible but requires proactive measures to maintain optimal temperatures and hydration. By combining protective strategies, appropriate admixtures, and advanced curing techniques, contractors can ensure the concrete achieves its intended strength and durability. The key takeaway is that while cold weather presents challenges, careful planning and execution can mitigate risks, ensuring successful concrete placement even in the harshest winter conditions.
Surviving Winter: Can You Overdress in Freezing Temperatures?
You may want to see also
Frequently asked questions
Pouring concrete in freezing temperatures is not recommended, as it can lead to reduced strength, cracking, and improper curing. The ideal temperature for concrete placement is between 50°F and 70°F (10°C and 21°C).
If concrete freezes before it gains sufficient strength (typically within the first 24–48 hours), it can cause the water in the mix to expand, leading to microcracks and a significant reduction in durability and structural integrity.
Yes, there are cold-weather concretes designed with accelerated set times and low-heat generating admixtures. Additionally, using heated water, aggregates, and enclosures can help mitigate the effects of freezing temperatures.
To protect concrete from freezing, use insulated blankets, heated enclosures, or straw to retain heat. Additionally, avoid pouring during severe cold snaps and ensure proper curing practices, such as using curing compounds or steam curing.
The minimum safe temperature for pouring concrete is generally considered to be around 40°F (4°C), provided proper cold-weather precautions are taken. Below this temperature, special measures are necessary to ensure proper curing and strength development.
