Emily Watson

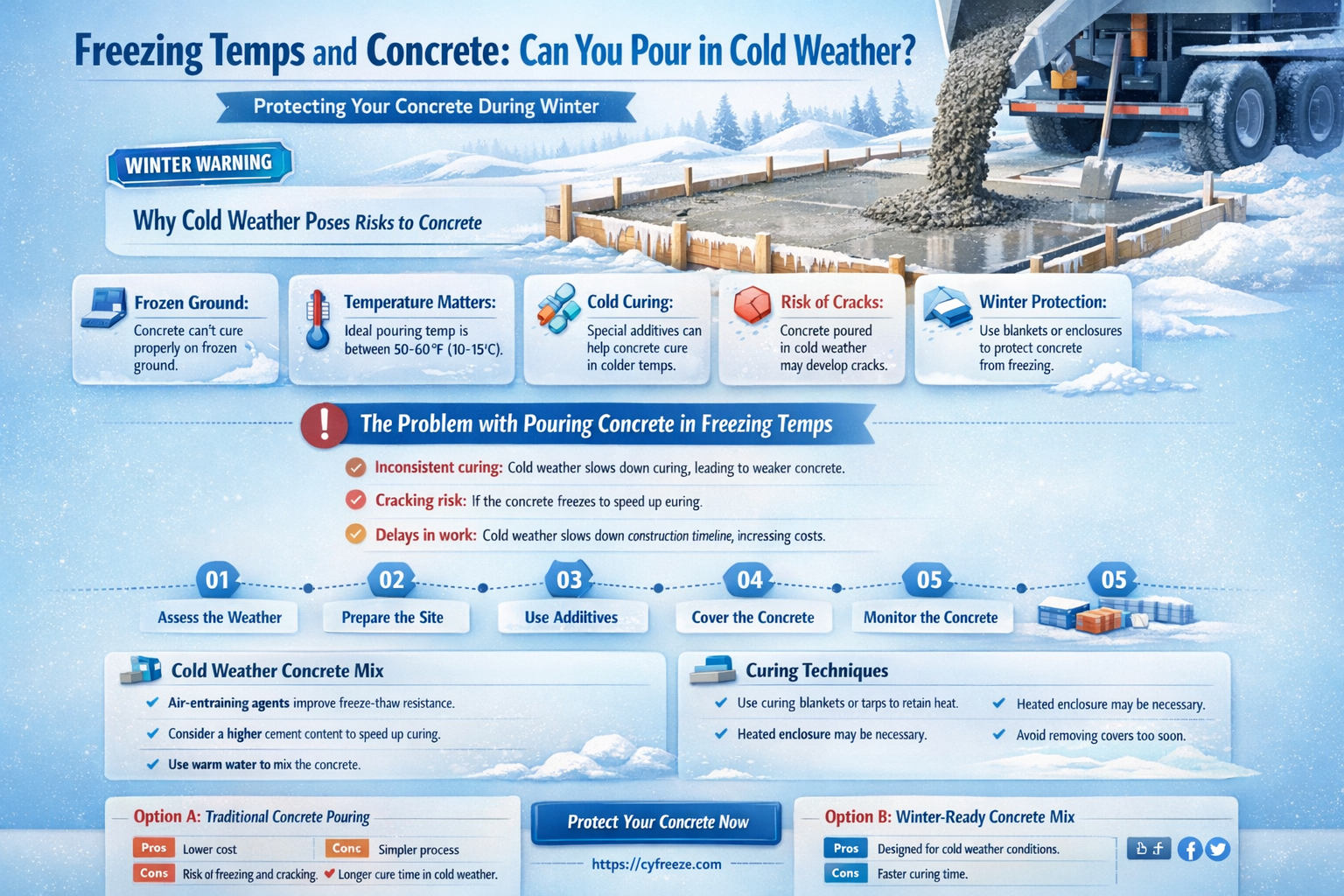

Working with concrete in freezing temperatures presents significant challenges that can compromise its strength and durability. When temperatures drop below 40°F (4°C), the water in the concrete mix begins to freeze before the concrete has fully cured, hindering the hydration process essential for its hardening. This can result in weak, porous, or cracked concrete. Additionally, freezing conditions can cause the surface to scale or flake, reducing its structural integrity. To mitigate these risks, specialized techniques such as using heated enclosures, accelerators, or insulated blankets are often employed. However, it is generally recommended to avoid pouring concrete in freezing temperatures unless proper precautions are taken to ensure optimal curing conditions.
| Characteristics | Values |
|---|---|
| Minimum Temperature for Placement | 40°F (4°C) or higher is recommended for proper hydration. Below this, special precautions are necessary. |
| Risk of Freezing | Concrete must not freeze within the first 24 hours after placement, as it can reduce strength by 50% or more. |
| Cold Weather Definition | Temperatures below 40°F (4°C) for more than 3 consecutive days. |
| Required Strength Gain | Concrete should achieve at least 500 psi (3.4 MPa) before exposed to freezing temperatures. |
| Curing Time Extension | Curing time may double or triple in cold weather conditions. |
| Accelerators Usage | Calcium chloride or non-chloride accelerators can be used to speed up setting time, but dosage must be carefully controlled. |
| Heated Enclosures | Temporary enclosures with heaters can maintain optimal temperatures for curing. |
| Insulated Blankets | Blankets or straw can be used to insulate concrete and retain heat. |
| Wind Protection | Windbreaks should be used to minimize heat loss and prevent rapid drying. |
| Low-Temperature Concrete Mixes | Special mixes with Type III cement or high early-strength cement are recommended for cold weather. |
| Monitoring Temperature | Thermocouples or temperature sensors should be used to monitor concrete temperature during curing. |
| Avoid Deicing Chemicals | Do not use deicing chemicals on new concrete for at least the first year, as they can cause scaling and damage. |
| Hydration Process | Hydration slows significantly below 40°F (4°C), requiring longer curing times. |
| Surface Protection | Protect surfaces from freezing and thawing cycles to prevent cracking and spalling. |
| Compliance with Standards | Follow ACI 306 (Guide to Cold Weather Concreting) for best practices and guidelines. |
Explore related products
What You'll Learn
Precautions for Pouring in Cold Weather
Pouring concrete in freezing temperatures is risky because the water within the mix can freeze before the concrete sets, leading to reduced strength and durability. When temperatures drop below 40°F (4°C), the hydration process slows, and below 25°F (-4°C), ice crystals can form, causing cracking and spalling. To mitigate these risks, careful planning and specific precautions are essential.
Heating the Materials: Start by using heated mixing water, ensuring it’s between 120°F and 140°F (49°C and 60°C). This elevates the concrete’s initial temperature, delaying freezing. Additionally, store aggregates in a warm, dry area to prevent them from absorbing cold moisture. Pre-heating the forms and subgrade can also help maintain the concrete’s temperature during placement.
Accelerators and Insulation: Incorporate chemical accelerators into the concrete mix to speed up the setting time. Calcium chloride is commonly used at a dosage of 2% by weight of cement, but avoid exceeding this to prevent corrosion in reinforced concrete. After pouring, cover the concrete with insulated blankets or straw to retain heat. For larger projects, heated enclosures or windbreaks can shield the work area from cold winds and precipitation.
Monitoring and Timing: Pour concrete during the warmest part of the day and avoid placing it directly on frozen ground. Continuously monitor the temperature of the concrete, air, and subgrade using thermometers. After placement, protect the concrete from freezing for at least 24 hours, or until it reaches a compressive strength of 500 psi. If freezing conditions persist, extend the protection period and use supplemental heat sources like portable heaters or heated hoses.
Curing and Post-Pour Care: Proper curing is critical in cold weather. Use steam curing or heated enclosures to maintain temperatures above 50°F (10°C) for at least 48 hours. Avoid rapid temperature fluctuations, as these can cause thermal cracking. Once cured, remove insulation gradually to prevent shock. For exterior work, apply a concrete sealer to protect against freeze-thaw cycles and deicing chemicals.
By following these precautions, you can successfully pour concrete in freezing temperatures, ensuring it achieves the required strength and longevity. However, if conditions are extreme or unpredictable, consider postponing the work to avoid costly failures.
Optimal Freezer Temperature: Preserving Food Safely and Efficiently
You may want to see also
Explore related products
Using Accelerators to Speed Setting
Pouring concrete in freezing temperatures is a risky endeavor, as the water within the mix can freeze before the concrete sets, leading to reduced strength and durability. However, accelerators offer a viable solution by speeding up the setting time, allowing the concrete to gain strength before temperatures drop critically. These admixtures, typically calcium chloride or non-chloride based, catalyze the hydration process, enabling the concrete to set faster even in cold conditions. For instance, calcium chloride can reduce setting time by up to 50%, but its dosage must be carefully controlled—typically 2% by weight of cement—to avoid corrosion of steel reinforcement.
The effectiveness of accelerators depends on both temperature and dosage. At temperatures just above freezing (0°C to 4°C), a 2% dosage of calcium chloride can achieve initial set within 2–3 hours, compared to 6–8 hours without an accelerator. Non-chloride accelerators, while more expensive, are safer for use with reinforced concrete and can be dosed at 4–8% by weight of cement. It’s crucial to follow manufacturer guidelines, as overdosing can lead to rapid setting, making the mix unworkable, or even cause cracking due to excessive heat generation.
Practical application requires careful planning. First, ensure the concrete mix is designed for cold weather, with a low water-to-cement ratio to minimize bleeding and improve strength. Preheat the mixing water to 15°C–20°C to offset the cold aggregate and ambient temperature. After placement, protect the concrete with insulated blankets or heated enclosures to maintain warmth during the critical early hours. Avoid using accelerators in temperatures below -7°C, as even accelerated mixes struggle to set effectively in such extreme cold.
While accelerators are powerful tools, they are not a standalone solution. Pair their use with other cold-weather concreting practices, such as heating materials, windbreaks, and proper curing. For example, combining accelerators with heated forms and steam curing can ensure the concrete reaches adequate strength in freezing conditions. Always test the mix in advance to confirm compatibility and performance, especially when using non-standard admixtures or in unusually cold climates.
In summary, accelerators are indispensable for concrete work in near-freezing temperatures, but their success hinges on precise dosing, complementary techniques, and adherence to best practices. By understanding their limitations and leveraging their benefits, contractors can confidently tackle cold-weather projects without compromising quality or safety.
Understanding the Freezing Point: When and Why Ice Forms
You may want to see also
Explore related products
Protective Blankets and Heaters
Concrete sets best within a temperature range of 50°F to 90°F (10°C to 32°C), but freezing conditions halt hydration, risking weak, porous structures. Protective blankets and heaters emerge as critical tools to combat this, creating microclimates that sustain optimal curing temperatures even in subzero environments. These systems aren’t just accessories—they’re essential safeguards for structural integrity when winter schedules can’t be avoided.
Types of Protective Blankets: Materials and Application
Insulated concrete blankets, typically made from fiberglass-infused felt or foam-backed fabrics, trap heat around the slab. For instance, polyethylene-coated fiberglass blankets offer R-values up to 4.5, sufficient to retain warmth from ground heat or external sources. Application is straightforward: secure blankets with stakes or sandbags, ensuring no gaps expose the concrete to cold air. For larger pours, spray-on insulating foams provide seamless coverage but require professional application to avoid air pockets.
Heating Strategies: Direct vs. Indirect Methods
Direct heating involves placing hydronic heating systems—tubes circulating hot water or glycol—beneath blankets to deliver consistent warmth. These systems maintain temperatures between 60°F and 75°F (15°C to 24°C), ideal for curing. Alternatively, electric resistance heaters embedded in blankets offer portability but demand careful monitoring to prevent overheating. Indirect methods, like tenting with propane heaters, are less precise but viable for small-scale projects. Always pair heaters with thermocouples to monitor slab temperature, avoiding spikes above 90°F (32°C) that accelerate shrinkage cracks.
Critical Timing and Temperature Thresholds
Blankets and heaters must be deployed immediately after finishing, as the first 24–48 hours are pivotal for strength development. For air temperatures below 20°F (-6°C), preheat the subgrade to 50°F (10°C) before placement, using ground heaters or insulated forms. Maintain a minimum concrete temperature of 50°F (10°C) throughout curing—failure to do so risks freezing the mix’s water content, causing irreversible damage. Remove blankets only after 72 hours, or when ambient temperatures rise above freezing consistently.
Practical Tips and Common Pitfalls
Wind is the enemy of these systems; use weighted edges or windbreaks to prevent heat loss. Avoid stacking blankets too heavily, as this can compress the concrete surface. For large slabs, divide the area into sections, heating and insulating in phases to manage costs. A common mistake is underestimating heat loss overnight—increase heater output by 20% during colder periods. Finally, always test equipment before use; a malfunctioning heater can turn a slab into a $10,000 ice rink.
By combining protective blankets with strategic heating, contractors can defy freezing temperatures, ensuring concrete cures with the same strength and durability as in summer conditions. It’s not just about finishing the job—it’s about finishing it right.
Freezing Temperatures and Bows: Impact on Performance and Durability
You may want to see also
Explore related products
Ideal Concrete Mix for Low Temperatures
Concrete work in freezing temperatures demands a specialized mix to ensure proper curing and long-term durability. Standard concrete mixes are vulnerable to frost damage during the initial curing phase, as water within the mix expands upon freezing, leading to microcracks and reduced strength. To combat this, an ideal low-temperature concrete mix incorporates accelerators, low water-cement ratios, and careful aggregate selection.
For instance, calcium chloride, added at 2% by weight of cement, accelerates hydration and reduces setting time, allowing concrete to gain strength before freezing temperatures set in. However, calcium chloride can corrode reinforcing steel, so non-chloride accelerators like calcium nitrate or calcium formate are preferred for reinforced structures.
The water-cement ratio is critical in cold weather concreting. A lower ratio, ideally below 0.45, minimizes free water available for freezing. This not only reduces the risk of frost damage but also enhances overall strength and durability. Utilizing heated mixing water, maintained between 120°F and 140°F (49°C and 60°C), further aids in achieving proper hydration and early strength development.
Additionally, aggregate selection plays a vital role. Coarse aggregates should be free of ice and snow, and fine aggregates should have a low moisture content. Pre-heating aggregates can also be beneficial, but careful monitoring is required to prevent overheating, which can lead to rapid moisture evaporation and workability issues.
Beyond mix design, proper placement and protection are crucial. Pouring concrete onto frozen subgrades should be avoided. Instead, ensure the subgrade is thawed and free of ice. After placement, immediate protection from freezing temperatures is essential. This can be achieved through the use of insulated blankets, heated enclosures, or straw and burlap covers. Maintaining a temperature above 50°F (10°C) for the first 24-48 hours is critical for proper curing and strength development.
Finally, remember that even with an ideal mix and careful placement, concrete curing in cold weather takes longer. Allow for extended curing times, typically 50-100% longer than in warmer conditions, to ensure the concrete reaches its full design strength.
Can Flea Eggs Survive Freezing Temperatures? Uncovering the Truth
You may want to see also
Explore related products
Curing Time Adjustments in Freezing Conditions
Concrete curing is a chemical process that requires specific conditions to achieve optimal strength and durability. In freezing temperatures, this process is significantly hindered, as water within the concrete mix can freeze, halting hydration and potentially causing microcracks. To counteract this, curing time adjustments are essential. Typically, concrete requires a minimum of 7 days to cure at temperatures above 50°F (10°C), but in freezing conditions, this timeline must be extended. For every 10°F (5.5°C) drop below 50°F, curing time should increase by 50%. For instance, at 20°F (-6.7°C), curing could take up to 3.5 times longer than under ideal conditions.
One effective method to manage curing in freezing conditions is the use of insulated blankets or heated enclosures. These tools maintain the concrete’s temperature above freezing, allowing hydration to continue uninterrupted. For example, placing insulated blankets over freshly poured concrete can retain heat from the exothermic reaction of cement hydration, ensuring the core temperature remains above 40°F (4.4°C). Additionally, incorporating accelerators like calcium chloride (at a dosage of 2% by weight of cement) can speed up initial set times, reducing the risk of freezing before the concrete gains strength.
However, reliance on accelerators alone is not foolproof. Overuse of calcium chloride can lead to corrosion in reinforced concrete, particularly in structures exposed to de-icing salts. A more balanced approach involves combining accelerators with protective measures like windbreaks and heated curing compounds. Windbreaks reduce heat loss due to wind chill, while heated curing compounds provide a controlled temperature environment. For large-scale projects, heated water (up to 100°F or 38°C) can be used in the concrete mix to offset cold ambient temperatures, but care must be taken to avoid thermal shock.
Comparatively, cold-weather concreting in Scandinavian countries often employs ground-heating systems or preheated aggregates to maintain workable temperatures. These methods, while resource-intensive, ensure consistent curing even in subzero conditions. In contrast, smaller projects might opt for simpler solutions like straw or burlap coverings, though these are less effective in prolonged freezing weather. The key takeaway is that curing time adjustments must be tailored to the specific conditions and resources available, balancing practicality with the need for structural integrity.
Finally, monitoring concrete temperature during curing is critical. Digital sensors embedded in the slab can provide real-time data, allowing adjustments to heating or insulation as needed. For DIY projects, a simple infrared thermometer can suffice to check surface temperatures. Regardless of scale, the goal is to keep the concrete’s core temperature above freezing for at least the first 24–48 hours, as this is when it is most vulnerable to damage. By understanding and implementing these adjustments, even freezing conditions need not halt concrete work, ensuring durable results despite the cold.
Hydraulic Fluid Freezing Point: Critical Temperature Thresholds Explained
You may want to see also
Frequently asked questions
No, pouring concrete in freezing temperatures is not recommended. Concrete needs to cure in a temperature range of 50°F (10°C) or higher to properly hydrate and gain strength. Freezing temperatures can cause the water in the concrete to freeze, preventing proper curing and leading to weak, cracked, or damaged concrete.
If concrete work is unavoidable in cold weather, use precautions such as heating the concrete mix, using accelerators to speed up setting time, insulating the concrete with blankets or straw, and ensuring the ground is not frozen before pouring. Follow ACI guidelines for cold-weather concreting to ensure proper strength and durability.
Concrete does not cure properly in freezing temperatures. If the concrete freezes before reaching its initial set (typically within the first 24 hours), it will not gain adequate strength and may fail. Even if it survives, the final strength and durability will be significantly compromised. Always avoid concreting in freezing conditions.
